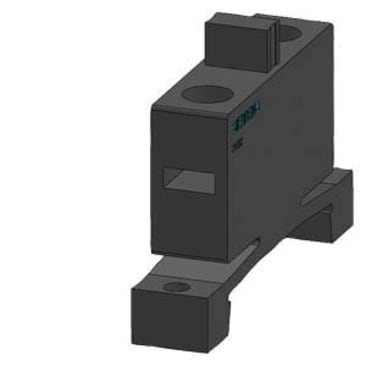

1 NC BASE MOUNTED CONTACT SIEMENS 3SB3420-0C
MFR Part #:Â 3SB3420-0C
SKU #:Â 3051878
Brand:Â SIRIUS
Please note this item is discontinued (order fulfillment will depend on stock availability): SIRIUS 3SB3420-0C Contact Block, 1NC, Gray, 1 -Pole
For 22 mm pushbuttons
CCC Marked | CE Marked | CSA Certified | EAC Certified | VDE Approved
Product Details
Attributes
Resources
SIRIUS Contact Block, 10 A, 400/300/24 VAC/VDC, 50/60 Hz, Contact Configuration: 1NC, 1 Poles, Screw Terminal Connection, (2) 24 to 16 AWG Wire, 10000000 cycles Operating Cycles, IP20, IP40 Enclosure, 400 V Insulation, Base, Floor Mounting, Gray, -25 to 70 deg C, 49.5 mm H x 10 mm W x 28 mm D
Amperage Rating:10 A
Clearance Items:Clearance
Color:Gray
Connection Type:Screw Terminal
Contact Configuration:1NC
Enclosure Type:IP20, IP40
Frequency Rating:50/60 Hz
Insulation Voltage:400 V
Mounting Type:Base, Floor
Number of Poles:1
Operating Cycles:10000000 cycles
Temperature Rating:-25 to 70 deg C
Voltage Rating:400/300/24 VAC/VDC
Product Details
SIRIUS Contact Block, 10 A, 400/300/24 VAC/VDC, 50/60 Hz, Contact Configuration: 1NC, 1 Poles, Screw Terminal Connection, (2) 24 to 16 AWG Wire, 10000000 cycles Operating Cycles, IP20, IP40 Enclosure, 400 V Insulation, Base, Floor Mounting, Gray, -25 to 70 deg C, 49.5 mm H x 10 mm W x 28 mm D
Attributes
Amperage Rating:Â 10 A
Clearance Items:Â Clearance
Color:Â Gray
Connection Type:Â Screw Terminal
Contact Configuration:Â 1NC
Enclosure Type:Â IP20, IP40
Frequency Rating:Â 50/60 Hz
Insulation Voltage:Â 400 V
Mounting Type:Â Base, Floor
Number of Poles:Â 1
Operating Cycles:Â 10000000 cycles
Temperature Rating:Â -25 to 70 deg C
Voltage Rating:Â 400/300/24 VAC/VDC
