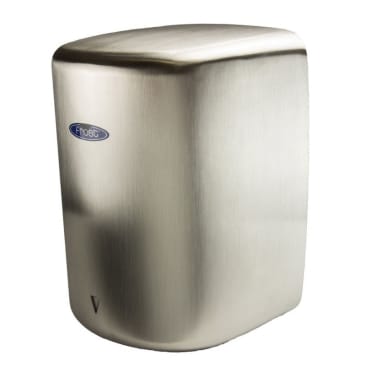

FROST 1193 SS AUTOMATIC HIGH SPEED HAND DRYER
MFR Part #: 1193
SKU #: 1188823
Brand: Frost™
UPC: 624622119300
frost™ 1193 High Speed Hand Dryer, Automatic, 185 to 221 deg F Air, 60 s Auto Cut-Off, Stainless Steel, White
5 Year
Mounting Template, Instruction, Screw and Anchor
BSMI Certified|CB Certified|CE Marked|CSA Certified|GS Certified|EMC Certified|GreenSpec Listed|LVD Certified|ROHS Compliant|UL Listed|WEEE Certified
Product Details
Attributes
Features
Resources
frost™ High Speed Hand Dryer, 110 to 120 V, 14.5 A, 1.3 to 1.6 kW, 50/60 Hz, 7 to 10 s Dry Time, 100 m/s Air Flow Velocity, Air Temperature: 185 to 221 deg F, Automatic, 7 in Sensing, 60 s Auto Cut-Off Time, 62.8 to 68.2 dB Sound Level, Motor Specifications: 700 W, 18000 rpm, Dual Ball Bearings Brush, Class 1, IPX1 Enclosure, Stainless Steel, White, Finish: Brushed, 8 in Width, 11 in Height, 7-1/8 in Depth
Color:White
Finish:Brushed
Sound Level:62.8 to 68.2 dB
Air Flow Velocity:100 m/s
Air Temperature:185 to 221 deg F
Amperage Rating:14.5 A
Auto Cut-Off Time:60 s
Automatic/Manual:Automatic
Depth:7-1/8 in
Dry Time:7 to 10 s
Enclosure Type:Class 1, IPX1
Frequency Rating:50/60 Hz
Height:11 in
Material:Stainless Steel
Motor Specifications:700 W, 18000 rpm, Dual Ball Bearings Brush
Power Rating:1.3 to 1.6 kW
Sensing Range:7 in
Voltage Rating:110 to 120 V
Width:8 in
- Ideal for areas with limited space requirements and installations promoting power conservation
- Bright blue LED helps identify ideal drying area
- Helps target ideal drying area
- Motor thermal protection - contains an auto resetting thermostat which turns the unit off at 105 deg C (221 deg F)
- Motor overload protection - motor assembly has a replaceable fuse
- Heater thermal protection - an auto resetting thermostat turns the unit off at 85 deg C (185 deg F)
- Drip-proof
- Mounting hole locations
