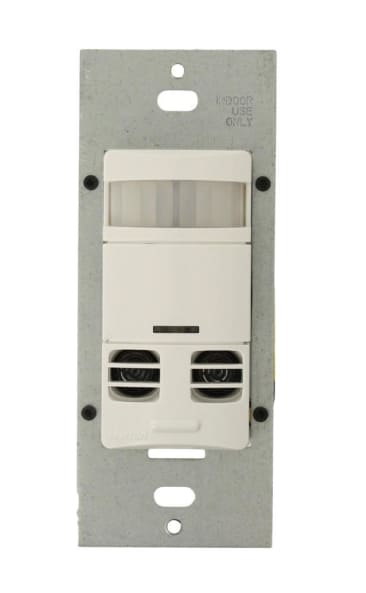

LEVITON OSSMT-M3W DECORA 347V MULTI-TECH 2400SQFT WALL SWITCH OCCUPENCY SENSOR LESS NEUTRAL WHITE
MFR Part #: OSSMT-M3W
SKU #: 3205090
UPC: 7847755403
Leviton® OSSMT-M3W 1-Pole Self Adjusting Occupancy Sensor, 120/230/277/347 V AC, Multi-Technology Sensor, 2400 sq-ft Coverage, 180 deg Viewing, Wall Mounting
5 Years
Commercial Applications
cULus/cETL Listed | CEC Title 24 Compliant | FCC Approved | NAFTA CF434
Product Details
Features
Resources
Leviton®, OSSMT-M3W, Occupancy Sensor, 1-Pole Self Adjusting, 120/230/277/347 V AC, 190/270/350/390 mW Power, Multi-Technology Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, LED Lamp, 50/60 Hz Response, Wall Mounting, 0 to 40 deg C, White, 46 in H x 1.75 in W x 1.85 in D Dimensions
Leviton® OSSMT multi-technology Decora® wall switch occupancy sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications.
- Fast, simple installation, fits in a standard wallbox and replaces a 1-pole wall switch, neutral and no neutral options available, sensor can be ganged together with other units in a multiple-switch wallplate
- Low profile design eliminates obtrusive scanning device look, elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
- Convenient pushbutton provides manual ON/OFF light switching at any time
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title 24 energy savings
- Ambient light recognition, integrated light sensor prevents lights from turning ON when the room is adequately illuminated by natural light
- Self-adaptive technology, callbacks for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- False detection circuitry
- Small motion sensitivity ultrasonic technology provides excellent minor motion sensitivity
- Ability to disable U/S (OSSMT-M), for added flexibility OSSMT-G has the ability to disable both PIR and U/S
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts
Product Details
Leviton®, OSSMT-M3W, Occupancy Sensor, 1-Pole Self Adjusting, 120/230/277/347 V AC, 190/270/350/390 mW Power, Multi-Technology Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, LED Lamp, 50/60 Hz Response, Wall Mounting, 0 to 40 deg C, White, 46 in H x 1.75 in W x 1.85 in D Dimensions
Leviton® OSSMT multi-technology Decora® wall switch occupancy sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications.
Features
- Fast, simple installation, fits in a standard wallbox and replaces a 1-pole wall switch, neutral and no neutral options available, sensor can be ganged together with other units in a multiple-switch wallplate
- Low profile design eliminates obtrusive scanning device look, elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
- Convenient pushbutton provides manual ON/OFF light switching at any time
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title 24 energy savings
- Ambient light recognition, integrated light sensor prevents lights from turning ON when the room is adequately illuminated by natural light
- Self-adaptive technology, callbacks for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- False detection circuitry
- Small motion sensitivity ultrasonic technology provides excellent minor motion sensitivity
- Ability to disable U/S (OSSMT-M), for added flexibility OSSMT-G has the ability to disable both PIR and U/S
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts
