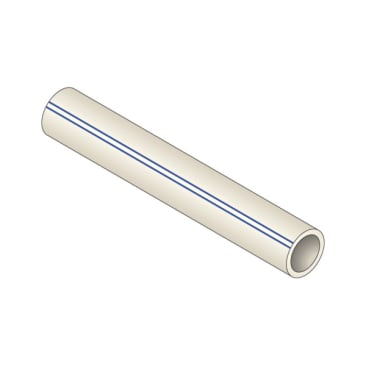

HEATLINK 20228 1 5X20FT BLUE PURE LINK PLUS UV PEX
MFR Part #: 20228
SKU #: 1305674
Brand: HeatLink®
UPC: 627998005727
HeatLink® 20228 20000 UV Stabilized Plus Potable Water Tubing, 1 in Nominal, 0.862 in ID x 1-1/8 in OD x 5 x 20 ft Straight L, 1/8 in THK Wall, Natural/Blue, Engel/Peroxide, Import
25 Years Limited
For use with hot/cold potable water systems or hydronic heating systems
ANSI/AWWA C904|ANSI/NSF-61|ANSI/NSF-14|ANSI/NSF-372|ANSI/UL 263|ASTM F876|ASTM F877|ASTM F1807|ASTM F1960|ASTM F2023|ASTM F2080|ASTM F2098|ASTM F2159|ASTM F2657|ASTM E84|CAN/ULC S101|CAN/ULC S102.2- 2007/2010|CSA B137.5 Listings|cNSF®us-pw-G-PEX 5106|NSF U.P. Code|ICC-ES|ICC-PMG|PPI TR-4|CSA B137.5 Potable|Intertek - ASTM E84 and CAN/ULC S102.2
Product Details
Attributes
Resources
HeatLink® Plus Potable Water Tubing, UV Stabilized, Series: 20000, 1 in Nominal, 0.862 in Inside Dia, 1-1/8 in Outside Dia, 5 x 20 ft Straight Length, 1/8 in Wall Thickness, 100 psi Working, 180 deg F, Engel/Peroxide, Natural/Blue, Import
High molecular crosslinked polyethylene (PEX) with minimum bending radius of 6X the diameter at 68 deg F (20 deg C). Maximum operating temperature 180 deg F at 100 psi (82 deg C at 7 bar). Blue printing for identification of cold water lines. The PureLink® Plus PEX-a tubing may be used with fittings that are compliant with ASTM F1807/F1960/F2080/F2098/F2159 standards.
Color:Natural/Blue
Country Of Origin:Canada
Length:20 ft
Nominal Size:1 in
Temperature Rating:180 deg F
Domestic/Import:Import
Inside Diameter:.862 in
Method of Manufacture:Engel/Peroxide
Outside Diameter:1-1/8 in
Series:20000
Type:UV Stabilized
Wall Thickness:1/8 in
Working Pressure:100 psi
Product Details
HeatLink® Plus Potable Water Tubing, UV Stabilized, Series: 20000, 1 in Nominal, 0.862 in Inside Dia, 1-1/8 in Outside Dia, 5 x 20 ft Straight Length, 1/8 in Wall Thickness, 100 psi Working, 180 deg F, Engel/Peroxide, Natural/Blue, Import
High molecular crosslinked polyethylene (PEX) with minimum bending radius of 6X the diameter at 68 deg F (20 deg C). Maximum operating temperature 180 deg F at 100 psi (82 deg C at 7 bar). Blue printing for identification of cold water lines. The PureLink® Plus PEX-a tubing may be used with fittings that are compliant with ASTM F1807/F1960/F2080/F2098/F2159 standards.
Attributes
Color: Natural/Blue
Country Of Origin: Canada
Length: 20 ft
Nominal Size: 1 in
Temperature Rating: 180 deg F
Domestic/Import: Import
Inside Diameter: .862 in
Method of Manufacture: Engel/Peroxide
Outside Diameter: 1-1/8 in
Series: 20000
Type: UV Stabilized
Wall Thickness: 1/8 in
Working Pressure: 100 psi
