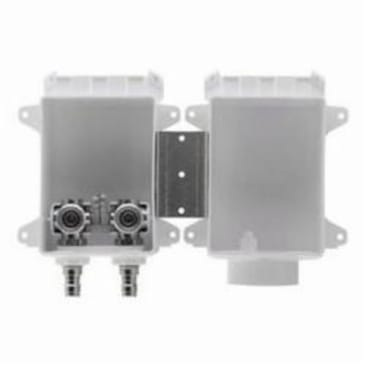

SIOUX CHIEF 696-2303XF OXBOX PEX WASHING MACHINE BOX
MFR Part #: 696-2303XF
SKU #: 1300922
Brand: Sioux Chief
UPC: 739236153982
Sioux Chief OxBox™ 696-2303XF Outlet Box With Plain Valve, 1/2 in PEX F1807 Inlet, 3/4 in Male Hose Thread Outlet, ABS
ASME A112.18.1|IPC Certified|IAPMO Listed|NSF-61|UPC Certified
Please contact your CSR regarding pricing
Product Details
Attributes
Features
Resources
Sioux Chief OxBox™ Outlet Box, Series: 696, 1/2 in Inlet, 3/4 in Outlet, PEX F1807 Inlet, Male Hose Thread Outlet, 250 psig Pressure, 250 deg F, ABS, 11-1/2 in W x 7-1/4 in H
Sioux Chief 696 series OxBox™ double hose bib outlet connection outlet box with drain box shall be used where necessary in plumbing supply/drainage systems. Unit shall allow for mounting with supply lines from top or bottom, on-stud or between-studs. Unit shall be available with plain valves or valves with water hammer arresters. Arresters shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top tracks of boxes for between stud configuration. Metal clip shall be installed on side slots of box in desired configuration. Drain box shall have a 5/8 in integral testable nipple on knockout. Outlet connections shall be generally 3/4 in.
Inlet Type:PEX F1807
Material:ABS
Outlet Size:3/4 in
Outlet Type:Male Hose Thread
Dimensions:11-1/2 in W x 7-1/4 in H
Inlet Size:1/2 in
Pressure Rating:250 psig
Series:696
Temperature Rating:250 deg F
- Boxes mount securely to stud or over studs
- Separates supply and drainage systems into two stud bays
- Separate boxes offer flexible layout
- Durable ABS stands up to jobsite abuse
- Drain knockout is easy to remove with pliers
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valve
- No arrester
- Standard pack (supply box, frame, bracket, debris cover)
Product Details
Sioux Chief OxBox™ Outlet Box, Series: 696, 1/2 in Inlet, 3/4 in Outlet, PEX F1807 Inlet, Male Hose Thread Outlet, 250 psig Pressure, 250 deg F, ABS, 11-1/2 in W x 7-1/4 in H
Sioux Chief 696 series OxBox™ double hose bib outlet connection outlet box with drain box shall be used where necessary in plumbing supply/drainage systems. Unit shall allow for mounting with supply lines from top or bottom, on-stud or between-studs. Unit shall be available with plain valves or valves with water hammer arresters. Arresters shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top tracks of boxes for between stud configuration. Metal clip shall be installed on side slots of box in desired configuration. Drain box shall have a 5/8 in integral testable nipple on knockout. Outlet connections shall be generally 3/4 in.
Attributes
Inlet Type: PEX F1807
Material: ABS
Outlet Size: 3/4 in
Outlet Type: Male Hose Thread
Dimensions: 11-1/2 in W x 7-1/4 in H
Inlet Size: 1/2 in
Pressure Rating: 250 psig
Series: 696
Temperature Rating: 250 deg F
Features
- Boxes mount securely to stud or over studs
- Separates supply and drainage systems into two stud bays
- Separate boxes offer flexible layout
- Durable ABS stands up to jobsite abuse
- Drain knockout is easy to remove with pliers
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valve
- No arrester
- Standard pack (supply box, frame, bracket, debris cover)
