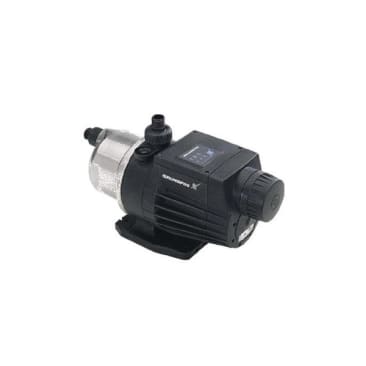

1HP 115V BOOSTER PUMP 96860195 GRUNDFOS MQ3-45 (96515513)
MFR Part #:Â 96860195
SKU #:Â 1149676
Brand:Â Grundfos
UPC:Â 5700312084204
Grundfos 96860195 MQ Series Pressure Booster Pump, 13.6 gpm Flow Rate, 1 in NPT Inlet x 1 in NPT Outlet, 110 to 120 V AC, 1 Phase
2 Years
Motor
CSAcus Certified
Product Details
Attributes
Features
Resources
Grundfos, 96860195, Pressure Booster Pump, Series: MQ Series, 13.6 gpm Flow Rate, 1 in NPT Inlet, 1 in NPT Outlet, 147.6 ft Maximum Head, 1.5 hp Power, 110 to 120 V AC, 10 A, 60 Hz Frequency, 1 ph, 109 psi Maximum, PPO + 20% Glass Fiber-PTFE Impeller, 32 to 113 deg F Ambient, IP54 Enclosure, POM + 25% Glass Fiber
Clearance Items:Clearance
Flow Rate:13.6 gpm
Outlet Size:1 in NPT
Voltage Rating:110 to 120 V AC
Amperage Rating:10 A
Enclosure Type:IP54
Frequency Rating:60 Hz
Impeller Type:PPO + 20% Glass Fiber-PTFE
Inlet Size:1 in NPT
Material:POM + 25% Glass Fiber
Maximum Head:147.6 ft
Maximum Pressure:109 psi
Phase:1
Power Rating:1.5 hp
Series:MQ Series
Temperature Rating:32 to 113 deg F Ambient
- MQ is a compact water supply system designed for domestic, agricultural and horticultural applications
- All-in-one pressure booster unit
- Easy installation
- Easy to operate
- Self-priming
- Dry-running protection
- Low noise
- Maintenance-free
- Standard pump version
- Standard material
- Bellow rubber shaft seal, Ceramic rotating seal face, Carbon resin-impregnated stationary seal face and NBR (nitrile rubber) secondary seal
Product Details
Grundfos, 96860195, Pressure Booster Pump, Series: MQ Series, 13.6 gpm Flow Rate, 1 in NPT Inlet, 1 in NPT Outlet, 147.6 ft Maximum Head, 1.5 hp Power, 110 to 120 V AC, 10 A, 60 Hz Frequency, 1 ph, 109 psi Maximum, PPO + 20% Glass Fiber-PTFE Impeller, 32 to 113 deg F Ambient, IP54 Enclosure, POM + 25% Glass Fiber
Attributes
Clearance Items:Â Clearance
Flow Rate:Â 13.6 gpm
Outlet Size:Â 1 in NPT
Voltage Rating:Â 110 to 120 V AC
Amperage Rating:Â 10 A
Enclosure Type:Â IP54
Frequency Rating:Â 60 Hz
Impeller Type:Â PPO + 20% Glass Fiber-PTFE
Inlet Size:Â 1 in NPT
Material:Â POM + 25% Glass Fiber
Maximum Head:Â 147.6 ft
Maximum Pressure:Â 109 psi
Phase:Â 1
Power Rating:Â 1.5 hp
Series:Â MQ Series
Temperature Rating:Â 32 to 113 deg F Ambient
Features
- MQ is a compact water supply system designed for domestic, agricultural and horticultural applications
- All-in-one pressure booster unit
- Easy installation
- Easy to operate
- Self-priming
- Dry-running protection
- Low noise
- Maintenance-free
- Standard pump version
- Standard material
- Bellow rubber shaft seal, Ceramic rotating seal face, Carbon resin-impregnated stationary seal face and NBR (nitrile rubber) secondary seal
