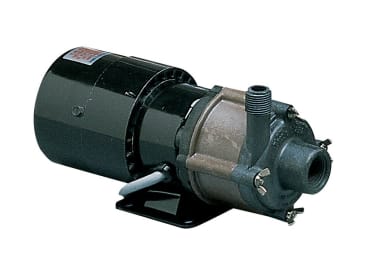

LITTLE GIANT 581613 3-MD-HC
MFR Part #: 581613
SKU #: 3169687
Brand: Little Giant®
UPC: 010121816138
LittleGIANT® 581613 MD-HC Magnetic Drive Pump, 12.5 gpm Flow Rate, 230 V AC, 200 deg F
1 Year
Designed for In-Line, Non-Submersed Use
Product Details
Attributes
Features
Resources
LittleGIANT®, 581613, Magnetic Drive Pump, Series: MD-HC, 12.5 gpm Flow Rate, 169 W Power, 230 V AC, 1.2 A, 60 Hz Frequency, 9.5 psi Maximum, Polypropylene Impeller, 200 deg F, Plastic/Thermoplastic, 5 in H x 4 in W x 8.9 in L Dimensions
Dimensions:5 in H x 4 in W x 8.9 in L
Flow Rate:12.5 gpm
Voltage Rating:230 V AC
Amperage Rating:1.2 A
Frequency Rating:60 Hz
Impeller Type:Polypropylene
Material:Plastic/Thermoplastic
Maximum Pressure:9.5 psi
Power Rating:169 W
Series:MD-HC
Temperature Rating:200 deg F
- 1/12 hp open FC motor
- Glass-filled polyphenylene sulfide magnet housing and volute
- 1.1 specific gravity
- Fluoroelastomer (FKM) O-ring
- Ceramic thrust washers and shaft
Product Details
LittleGIANT®, 581613, Magnetic Drive Pump, Series: MD-HC, 12.5 gpm Flow Rate, 169 W Power, 230 V AC, 1.2 A, 60 Hz Frequency, 9.5 psi Maximum, Polypropylene Impeller, 200 deg F, Plastic/Thermoplastic, 5 in H x 4 in W x 8.9 in L Dimensions
Attributes
Dimensions: 5 in H x 4 in W x 8.9 in L
Flow Rate: 12.5 gpm
Voltage Rating: 230 V AC
Amperage Rating: 1.2 A
Frequency Rating: 60 Hz
Impeller Type: Polypropylene
Material: Plastic/Thermoplastic
Maximum Pressure: 9.5 psi
Power Rating: 169 W
Series: MD-HC
Temperature Rating: 200 deg F
Features
- 1/12 hp open FC motor
- Glass-filled polyphenylene sulfide magnet housing and volute
- 1.1 specific gravity
- Fluoroelastomer (FKM) O-ring
- Ceramic thrust washers and shaft
