LITTLE GIANT 582503 4-MD-SC
MFR Part #:Â 582503
SKU #:Â 3169694
Brand: Little Giant®
UPC:Â 010121825031

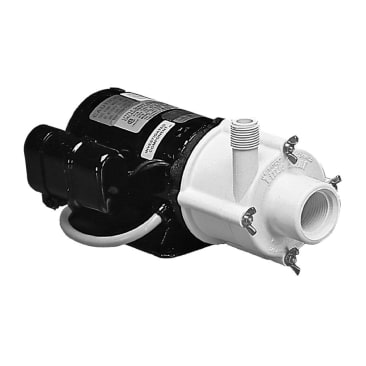

Little Giant® 582503 In-Line Non-Submersible Magnetic Drive Pump, 14 gpm Flow Rate, 1/2 in FNPT Inlet x 1/2 in MNPT Outlet, 115 V AC, 150 deg F
12 Months Limited
For circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions and other moderately corrosive chemicals and solutions that are compatible with the pump's material of construction
cCSAus Certified | UL Listed
Product Details
Features
Resources
Little Giant® Magnetic Drive Pump, In-Line Non-Submersible, 14 gpm Flow Rate, 1/2 in FNPT Inlet, 1/2 in MNPT Outlet, 185 W Power, 115 V AC, 1.7 A, 60 Hz Frequency, 10.5 psi Maximum, 3000 rpm Motor, Glass-Filled Polypropylene Impeller, 150 deg F, Open Enclosure, Sleeve Bearing, Glass Filled Polypropylene, 9.6 in L x 5.5 in W x 4.9 in H Dimensions
- 1/10 hp open FC PSC motor
- Glass-filled polypropylene magnet housing
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- Ceramic thrust washers and shaft
Product Details
Little Giant® Magnetic Drive Pump, In-Line Non-Submersible, 14 gpm Flow Rate, 1/2 in FNPT Inlet, 1/2 in MNPT Outlet, 185 W Power, 115 V AC, 1.7 A, 60 Hz Frequency, 10.5 psi Maximum, 3000 rpm Motor, Glass-Filled Polypropylene Impeller, 150 deg F, Open Enclosure, Sleeve Bearing, Glass Filled Polypropylene, 9.6 in L x 5.5 in W x 4.9 in H Dimensions
Features
- 1/10 hp open FC PSC motor
- Glass-filled polypropylene magnet housing
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- Ceramic thrust washers and shaft
