LITTLE GIANT 582603 4-MD-HC
MFR Part #: 582603
SKU #: 3169703
Brand: Little Giant®
UPC: 010121826038

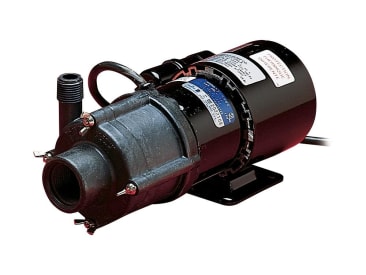

LittleGIANT® 582603 MD Magnetic Drive Pump, 14 gpm Flow Rate, 19.69 in Inlet x 1 in Outlet, 115 V AC, 200 deg F
1 Year
Product Details
Attributes
Features
Resources
LittleGIANT®, 582603, Magnetic Drive Pump, Series: MD, 14 gpm Flow Rate, 19.69 in Inlet, 1 in Outlet, 185 W Power, 115 V AC, 1.7 A, 60 Hz Frequency, 10.5 psi Maximum, Polypropylene Impeller, 200 deg F, Plastic/Thermoplastic, 4.9 in H x 5.5 in W x 9.6 in L Dimensions
Inlet Size:19.69 in
Material:Plastic/Thermoplastic
Outlet Size:1 in
- 1/10 hp open FC PSC motor
- Glass-filled polyphenylene sulfide magnet housing and volute
- Fluoroelastomer (FKM) O-ring
- Ceramic thrust washers and shaft
- 1 in FNPT (25.4 mm) intake
- Run dry capability up to 8 hr
Product Details
LittleGIANT®, 582603, Magnetic Drive Pump, Series: MD, 14 gpm Flow Rate, 19.69 in Inlet, 1 in Outlet, 185 W Power, 115 V AC, 1.7 A, 60 Hz Frequency, 10.5 psi Maximum, Polypropylene Impeller, 200 deg F, Plastic/Thermoplastic, 4.9 in H x 5.5 in W x 9.6 in L Dimensions
Attributes
Inlet Size: 19.69 in
Material: Plastic/Thermoplastic
Outlet Size: 1 in
Features
- 1/10 hp open FC PSC motor
- Glass-filled polyphenylene sulfide magnet housing and volute
- Fluoroelastomer (FKM) O-ring
- Ceramic thrust washers and shaft
- 1 in FNPT (25.4 mm) intake
- Run dry capability up to 8 hr
