LITTLE GIANT 582604 TE-4-MD-HC
MFR Part #:Â 582604
SKU #:Â 3169704
Brand: Little Giant®
UPC:Â 010121826045

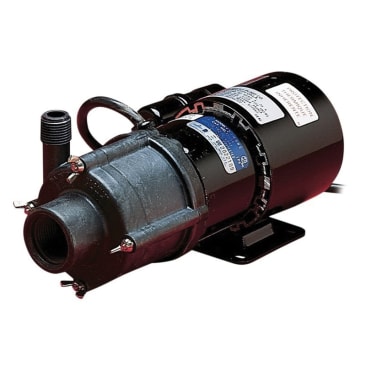

Little Giant® 582604 In-Line Non-Submersible Magnetic Drive Pump, 14 gpm Flow Rate, 1/2 in FNPT Inlet x 1/2 in MNPT Outlet, 115 V AC, 200 deg F
For circulation of highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions and other highly corrosive chemicals and solutions that are compatible with the pump's material of construction
cCSAus Certified
Product Details
Features
Resources
Little Giant® Magnetic Drive Pump, In-Line Non-Submersible, 14 gpm Flow Rate, 1/2 in FNPT Inlet, 1/2 in MNPT Outlet, 178 W Power, 115 V AC, 1.7 A, 60 Hz Frequency, 10.5 psi Maximum, 3000 rpm Motor, Glass-Filled Polypropylene Impeller, 200 deg F, 10.9 in L x 5.5 in W x 5 in H Dimensions
- 1/10 hp open TEFC PSC motor
- Glass-filled polyphenylene sulfide magnet housing and volute
- 1.1 specific gravity
- Fluoroelastomer (FKM) O-ring
- Ceramic thrust washers and shaft
Product Details
Little Giant® Magnetic Drive Pump, In-Line Non-Submersible, 14 gpm Flow Rate, 1/2 in FNPT Inlet, 1/2 in MNPT Outlet, 178 W Power, 115 V AC, 1.7 A, 60 Hz Frequency, 10.5 psi Maximum, 3000 rpm Motor, Glass-Filled Polypropylene Impeller, 200 deg F, 10.9 in L x 5.5 in W x 5 in H Dimensions
Features
- 1/10 hp open TEFC PSC motor
- Glass-filled polyphenylene sulfide magnet housing and volute
- 1.1 specific gravity
- Fluoroelastomer (FKM) O-ring
- Ceramic thrust washers and shaft
