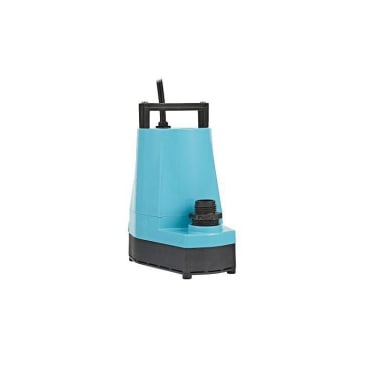

LITTLE GIANT 505723 1/6HP 115V UTILITY PUMP WITH 10FT CORD
MFR Part #:Â 505723
SKU #:Â 1690213
Brand:Â Unknown
Little GIANT® 5 Series 505723 Submersible Utility Pump, 115 V, 5 A, 0.17 hp, 25 gpm, Aluminum
12 Month
10 ft Power Cord and 3/4 in GHT Adapter
Ideal for light commercial and multipurpose residential applications where water removal, transfer or circulation is necessary
UL Listed
Product Details
Attributes
Features
Resources
Little GIANT® Submersible Utility Pump, Series: 5 Series, 5-MSP Model, 115 V, 5 A, 380 W Power, 60 Hz Frequency, 0.17 hp Rating, 25 gpm Flow Rate, 1 ph, 1 in Discharge, 1 Stage, Sleeve Bearing, 120 deg F, Nylon Impeller, Aluminum, 6.1 in L x 4.29 in W x 8.07 in H Dimensions, 26 ft Shut-Off, FNPT Discharge Additional Information
Weighing just under 8 lb and producing 1500 gph, the 5 Series utility pump is truly a Little GIANT®! The compact and robust 5 Series utility pump is rated for continuous-duty allowing for a wide range of applications and uses. Featuring six models, these fully submersible pumps are ideal for light commercial and multi-purpose residential applications where water removal, transfer or circulation is necessary.
Flow Rate:25 gpm
Voltage Rating:115 V
Additional Information:26 ft Shut-Off, FNPT Discharge
Amperage Rating:5 A
Bearing Type:Sleeve
Dimensions:6.1 in L x 4.29 in W x 8.07 in H
Discharge Size:1 in
Frequency Rating:60 Hz
HP Rating:.17 hp
Impeller Material:Nylon
Material:Aluminum
Model:5-MSP
Number of Stages:1
Phase:1 ph
Power Rating:380 W
Series:5 Series
Temperature Rating:120 deg F
- 1/6 hp oil-free PSC motor is environmentally-friendly and delivers 1500 gph maximum capacity
- Epoxy-coated cast aluminum pump housing gives strength and heat dissipation for both consumer and professional use
- 1 in discharge with 3/4 in garden hose adapter
- Removable screen for easy cleaning
- 1/8 in pump down with screen and 1/16 in pump down without screen reduces cleanup time
Product Details
Little GIANT® Submersible Utility Pump, Series: 5 Series, 5-MSP Model, 115 V, 5 A, 380 W Power, 60 Hz Frequency, 0.17 hp Rating, 25 gpm Flow Rate, 1 ph, 1 in Discharge, 1 Stage, Sleeve Bearing, 120 deg F, Nylon Impeller, Aluminum, 6.1 in L x 4.29 in W x 8.07 in H Dimensions, 26 ft Shut-Off, FNPT Discharge Additional Information
Weighing just under 8 lb and producing 1500 gph, the 5 Series utility pump is truly a Little GIANT®! The compact and robust 5 Series utility pump is rated for continuous-duty allowing for a wide range of applications and uses. Featuring six models, these fully submersible pumps are ideal for light commercial and multi-purpose residential applications where water removal, transfer or circulation is necessary.
Attributes
Flow Rate:Â 25 gpm
Voltage Rating:Â 115 V
Additional Information:Â 26 ft Shut-Off, FNPT Discharge
Amperage Rating:Â 5 A
Bearing Type:Â Sleeve
Dimensions:Â 6.1 in L x 4.29 in W x 8.07 in H
Discharge Size:Â 1 in
Frequency Rating:Â 60 Hz
HP Rating:Â .17 hp
Impeller Material:Â Nylon
Material:Â Aluminum
Model:Â 5-MSP
Number of Stages:Â 1
Phase:Â 1 ph
Power Rating:Â 380 W
Series:Â 5 Series
Temperature Rating:Â 120 deg F
Features
- 1/6 hp oil-free PSC motor is environmentally-friendly and delivers 1500 gph maximum capacity
- Epoxy-coated cast aluminum pump housing gives strength and heat dissipation for both consumer and professional use
- 1 in discharge with 3/4 in garden hose adapter
- Removable screen for easy cleaning
- 1/8 in pump down with screen and 1/16 in pump down without screen reduces cleanup time
