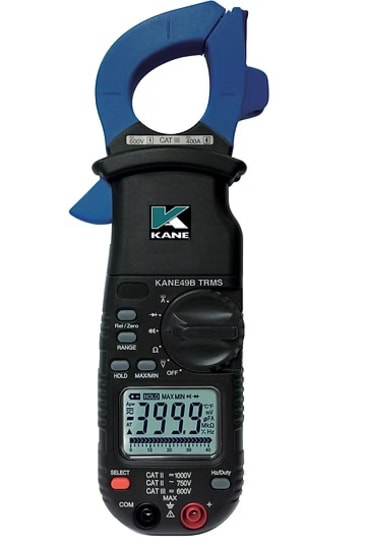

KANE KANE49B 400A TRUE-RMS DIGITAL CLAMP METER
MFR Part #:Â DL49B
SKU #:Â 1689185
Brand:Â Kane
UEi TEST INSTRUMENTS™ DL49B Digital Multimeter, 400 mV to 1000 V, 40 to 400 A, 400 Ohm to 40 MOhm, 2 V Measuring Range
3 Year Limited
(2) Test Leads, (2) AAA batteries, Zippered Case, Instruction Manual
For HVAC technicians, electricians and plant maintenance professionals
cUL/US Listed, CE Certified, IEC61010-2-032
Product Details
Attributes
Features
Resources
UEi TEST INSTRUMENTS™ Digital Multimeter, 400 mV to 1000 V, 40 to 400 A, 99.99 Hz to 99.99 MHz, 400 Ohm to 40 MOhm Resistance, 2 V Measuring, +/-0.5%, +/-0.8%, +/-2% Voltage Accuracy, +/-1.5%, +/-1.9%, +/-2.5%, +/-2.9% Current Accuracy, +/-1%, +/-2% Resistance Accuracy, +/-0.1% Frequency Accuracy, +/-0.2% Duty Cycle Accuracy, 1 to 99% Duty Cycle, Additional Information: AAA Battery Size
Additional Information:AAA Battery Size
Amperage Rating:40 to 400 A
Current Accuracy:+/-1.5%, +/-1.9%, +/-2.5%, +/-2.9%
Duty Cycle:1 to 99 %
Duty Cycle Accuracy:+/-0.2 %
Frequency Accuracy:+/-0.1 %
Frequency Rating:99.99 Hz to 99.99 MHz
Measuring Range:2 V
Resistance:400 Ohm to 40 MOhm
Resistance Accuracy:+/-1%, +/-2%
Voltage Accuracy:+/-0.5%, +/-0.8%, +/-2%
Voltage Rating:400 mV to 1000 V
- True RMS
- Data hold
- Min/max function
- Auto power-off
- Test lead storage
- Continuity - 600 V RMS overload protection
Product Details
UEi TEST INSTRUMENTS™ Digital Multimeter, 400 mV to 1000 V, 40 to 400 A, 99.99 Hz to 99.99 MHz, 400 Ohm to 40 MOhm Resistance, 2 V Measuring, +/-0.5%, +/-0.8%, +/-2% Voltage Accuracy, +/-1.5%, +/-1.9%, +/-2.5%, +/-2.9% Current Accuracy, +/-1%, +/-2% Resistance Accuracy, +/-0.1% Frequency Accuracy, +/-0.2% Duty Cycle Accuracy, 1 to 99% Duty Cycle, Additional Information: AAA Battery Size
Attributes
Additional Information:Â AAA Battery Size
Amperage Rating:Â 40 to 400 A
Current Accuracy:Â +/-1.5%, +/-1.9%, +/-2.5%, +/-2.9%
Duty Cycle:Â 1 to 99 %
Duty Cycle Accuracy:Â +/-0.2 %
Frequency Accuracy:Â +/-0.1 %
Frequency Rating:Â 99.99 Hz to 99.99 MHz
Measuring Range:Â 2 V
Resistance:Â 400 Ohm to 40 MOhm
Resistance Accuracy:Â +/-1%, +/-2%
Voltage Accuracy:Â +/-0.5%, +/-0.8%, +/-2%
Voltage Rating:Â 400 mV to 1000 V
Features
- True RMS
- Data hold
- Min/max function
- Auto power-off
- Test lead storage
- Continuity - 600 V RMS overload protection
