KANE KANE525 1000V DIGITAL MULTIMETER WITH TEMPERATURE & DATA LOGGING
MFR Part #:Â 525
SKU #:Â 1689219
Brand:Â Kane
UEi TEST INSTRUMENTS™ 525 True RMS Wireless Multimeter With Power Factor, 1000 V, 10 A, 50 MOhm, Backlit Display
2 Year Limited
(3) ATL57 Test Leads, AAC3 Alligator Clips, (4) AA Batteries, ATT71 Temperature Probe, AC519 Pouch/Case and Manual
For current measurements, measure electrical loads, motor or line current, measure circuit breakers, circuit continuity or specified resistance, control voltage or system board voltage checks, diode test malfunction/unbroken paths and ambient or surface temperatures applications
CAT IV 600 V/CAT III 1000 V|CE EN 61010-1:2010 3rd Edition|ETL 61010-1:2012 3rd Edition|FCC/IC Approved|IEC 61010-2-033:2012 Edition|RoHS Compliant
Product Details
Attributes
Features
Resources
UEi TEST INSTRUMENTS™ True RMS Wireless Multimeter, 1000 V, 10 A, 45 to 500 Hz, 9999 uF, 50 MOhm Resistance, 6 to 1000 V, -328 to 999 deg F, 1000 to 2462 deg F Measuring, 0.001 V, 0.01 V, 0.1 V, 1 V, 0.001 to 1 V, 0.1 mV, 0.1 uA, 1 uA, 0.01 mA, 0.1 mA, 0.0001 A, 0.01 A, 0.1 Ohm, 0.001 kOhm, 0.01 kOhm, 0.1 kOhm, 0.001 MOhm, 0.01 MOhm, 0.01 nF, 0.1 nF, 0.001 uF, 0.01 uF, 0.1 uF, 1 uF, 0.1 deg F, 1 deg F Resolution, Backlit Display, AA Battery, IP42 Enclosure, Voltage Accuracy: +/-1%, +/-1.5%, +/-0.75%, +/-2%, +/-0.2%, Current Accuracy: +/-1%, +/-1.5%, 0.2%, +/-2%, +/-0.8%, +/-0.3%, +/-0.75%, +/-1.2% Resistance Accuracy, +/-2%, +/-2.5%, +/-3% Capacitance Accuracy, +/-1.5 % Temperature Accuracy, Frequency Accuracy: +/-0.05 %, +/-0.1 % Duty Cycle Accuracy, <3 V Diode Test, 1 to 99 % Duty Cycle, 0.5 V Voltage Sensitivity, <75 % Humidity Rating, -328 to 2462 deg F, 7.27 x 3.5 x 2.17 in, Additional Information: 6 ft Drop Protection, TOV Protection

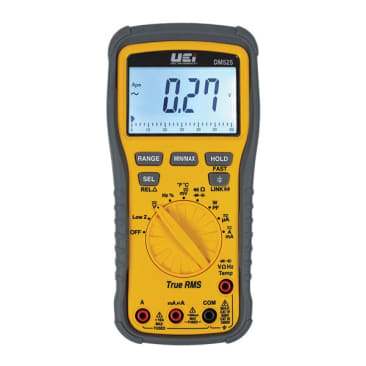

The UEi DM525 is an Industrial level 1000V AC/DC True-RMS multimeter with wireless capability and a free App. The DM525 features Watt/Power Factor measurements, Watt/Power factor is an expression of energy efficiency. The increased functionality gives technicians the ability to do more. Other functions include resistance, diode test, audible continuity, min/max, Fast min/max, capacitance, fused test lead inputs, amps, microamps, milliamps, temperature and a protective rubber boot with a kick stand. It also features auto ranging and test lead holders. DM525 is backed by a 2-year limited warranty.
Additional Information:6 ft Drop Protection, TOV Protection
Amperage Rating:10 A
Battery Type:AA
Capacitance:9999 uF
Capacitance Accuracy:+/-2%, +/-2.5%, +/-3%
Current Accuracy:+/-1%, +/-1.5%, 0.2%, +/-2%, +/-0.8%
Dimensions:7.27 x 3.5 x 2.17 in
Diode Test:<3 V
Display Type:Backlit
Duty Cycle:1 to 99 %
Duty Cycle Accuracy:+/-0.1 %
Enclosure Type:IP42
Frequency Accuracy:+/-0.05 %
Frequency Rating:45 to 500 Hz
Humidity Rating:<75 %
Measuring Range:6 to 1000 V, -328 to 999 deg F, 1000 to 2462 deg F
Resistance:50 MOhm
Resistance Accuracy:+/-0.3%, +/-0.75%, +/-1.2%
Resolution:0.001 V, 0.01 V, 0.1 V, 1 V, 0.001 to 1 V, 0.1 mV, 0.1 uA, 1 uA, 0.01 mA, 0.1 mA, 0.0001 A, 0.01 A, 0.1 Ohm, 0.001 kOhm, 0.01 kOhm, 0.1 kOhm, 0.001 MOhm, 0.01 MOhm, 0.01 nF, 0.1 nF, 0.001 uF, 0.01 uF, 0.1 uF, 1 uF, 0.1 deg F, 1 deg F
Temperature Accuracy:+/-1.5 %
Temperature Rating:-328 to 2462 deg F
Voltage Accuracy:+/-1%, +/-1.5%, +/-0.75%, +/-2%, +/-0.2%
Voltage Rating:1000 V
Voltage Sensitivity:.5 V
- Wireless capability
- Free App
- Min/Max
- Hold
- 1 ms Fast response Min/Max
- 6 ft drop protection
- IP42 ingress protection
- Low battery indicator
- Rubber boot w/ kick stand
- Test lead holders
- High resolution backlit display
- 24 segment bargraph
- Auto ranging
- Auto power off
- 2-Year limited warranty
Product Details
UEi TEST INSTRUMENTS™ True RMS Wireless Multimeter, 1000 V, 10 A, 45 to 500 Hz, 9999 uF, 50 MOhm Resistance, 6 to 1000 V, -328 to 999 deg F, 1000 to 2462 deg F Measuring, 0.001 V, 0.01 V, 0.1 V, 1 V, 0.001 to 1 V, 0.1 mV, 0.1 uA, 1 uA, 0.01 mA, 0.1 mA, 0.0001 A, 0.01 A, 0.1 Ohm, 0.001 kOhm, 0.01 kOhm, 0.1 kOhm, 0.001 MOhm, 0.01 MOhm, 0.01 nF, 0.1 nF, 0.001 uF, 0.01 uF, 0.1 uF, 1 uF, 0.1 deg F, 1 deg F Resolution, Backlit Display, AA Battery, IP42 Enclosure, Voltage Accuracy: +/-1%, +/-1.5%, +/-0.75%, +/-2%, +/-0.2%, Current Accuracy: +/-1%, +/-1.5%, 0.2%, +/-2%, +/-0.8%, +/-0.3%, +/-0.75%, +/-1.2% Resistance Accuracy, +/-2%, +/-2.5%, +/-3% Capacitance Accuracy, +/-1.5 % Temperature Accuracy, Frequency Accuracy: +/-0.05 %, +/-0.1 % Duty Cycle Accuracy, <3 V Diode Test, 1 to 99 % Duty Cycle, 0.5 V Voltage Sensitivity, <75 % Humidity Rating, -328 to 2462 deg F, 7.27 x 3.5 x 2.17 in, Additional Information: 6 ft Drop Protection, TOV Protection
The UEi DM525 is an Industrial level 1000V AC/DC True-RMS multimeter with wireless capability and a free App. The DM525 features Watt/Power Factor measurements, Watt/Power factor is an expression of energy efficiency. The increased functionality gives technicians the ability to do more. Other functions include resistance, diode test, audible continuity, min/max, Fast min/max, capacitance, fused test lead inputs, amps, microamps, milliamps, temperature and a protective rubber boot with a kick stand. It also features auto ranging and test lead holders. DM525 is backed by a 2-year limited warranty.
Attributes
Additional Information:Â 6 ft Drop Protection, TOV Protection
Amperage Rating:Â 10 A
Battery Type:Â AA
Capacitance:Â 9999 uF
Capacitance Accuracy:Â +/-2%, +/-2.5%, +/-3%
Current Accuracy:Â +/-1%, +/-1.5%, 0.2%, +/-2%, +/-0.8%
Dimensions:Â 7.27 x 3.5 x 2.17 in
Diode Test:Â <3 V
Display Type:Â Backlit
Duty Cycle:Â 1 to 99 %
Duty Cycle Accuracy:Â +/-0.1 %
Enclosure Type:Â IP42
Frequency Accuracy:Â +/-0.05 %
Frequency Rating:Â 45 to 500 Hz
Humidity Rating:Â <75 %
Measuring Range:Â 6 to 1000 V, -328 to 999 deg F, 1000 to 2462 deg F
Resistance:Â 50 MOhm
Resistance Accuracy:Â +/-0.3%, +/-0.75%, +/-1.2%
Resolution:Â 0.001 V, 0.01 V, 0.1 V, 1 V, 0.001 to 1 V, 0.1 mV, 0.1 uA, 1 uA, 0.01 mA, 0.1 mA, 0.0001 A, 0.01 A, 0.1 Ohm, 0.001 kOhm, 0.01 kOhm, 0.1 kOhm, 0.001 MOhm, 0.01 MOhm, 0.01 nF, 0.1 nF, 0.001 uF, 0.01 uF, 0.1 uF, 1 uF, 0.1 deg F, 1 deg F
Temperature Accuracy:Â +/-1.5 %
Temperature Rating:Â -328 to 2462 deg F
Voltage Accuracy:Â +/-1%, +/-1.5%, +/-0.75%, +/-2%, +/-0.2%
Voltage Rating:Â 1000 V
Voltage Sensitivity:Â .5 V
Features
- Wireless capability
- Free App
- Min/Max
- Hold
- 1 ms Fast response Min/Max
- 6 ft drop protection
- IP42 ingress protection
- Low battery indicator
- Rubber boot w/ kick stand
- Test lead holders
- High resolution backlit display
- 24 segment bargraph
- Auto ranging
- Auto power off
- 2-Year limited warranty
