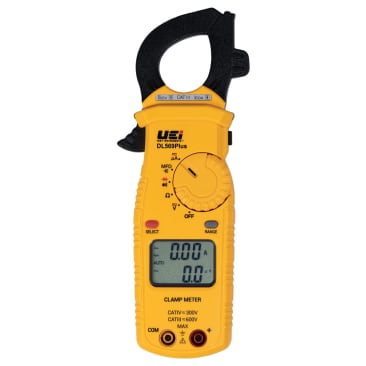

KANE KANE569 400A DUAL DISPLAY CLAMP METER WITH TEST LEAD
MFR Part #:Â 569
SKU #:Â 1689214
Brand:Â Kane
UEi TEST INSTRUMENTS™ 569 Clamp Meter, 750/1000 V, 400 A, 40 MOhm, LCD Display
1 Year Limited
ATL55 Test Leads, AAC3 Alligator Clips, (2) AAA Batteries, AC560 Pouch/Case, Capacitance, Microamps, Test Lead Storage and Manual
Measure Voltage, Circuit Continuity, Resistance and Diode Malfunctions, Check System Boards and Live Wires Applications
CAT III 600 V|cETLus Listed|UL 61010-1
Product Details
Attributes
Features
Resources
UEi TEST INSTRUMENTS™ Clamp Meter, 750/1000 V, 400 A, 40 MOhm Resistance, 4000, LCD Display, AC Current Accuracy: +/-2.9%, +/-1.9%, Voltage Accuracy: +/-2%, +/-0.5%, +/-0.8%, CAT III 600 V, 32 to 122 deg F Operating Temperature, 4000 uF, 3.5 % Capacitance Accuracy, <80 % Humidity Rating, +/-1 % Resistance Accuracy, 0.01 A, 0.1 A, 0.1 mV, 0.1 V, 1 V, 0.1 V, 1 V, 0.01 nF, 0.1 nF, 0.001 uF, 0.01 uF, 0.1 uF, 1 uF, 0.001 kOhm, 0.01 kOhm Resolution, 8.7 x 2.52 x 1.41 in
The UEi DL569 is a 400A entry-level dual display HVAC/R clamp meter. Each meter includes a set of standard test leads, threaded alligator clips for hands-free testing, and a zippered carrying pouch. The DL569 is safety rated at CAT IV 300V / CAT III 600V. Recently upgraded, the DL569 now features capacitance and microamps measurements in addition to existing functions such as AC/DC voltage, AC amps, and resistance. DL569 is backed by a 1-Year limited warranty.
AC Current Accuracy:+/-2.9%, +/-1.9%
Amperage Rating:400 A
Capacitance:4000 uF
Capacitance Accuracy:3.5 %
Counts:4000
Dimensions:8.7 x 2.52 x 1.41 in
Display Type:LCD
Humidity Rating:<80 %
Operating Temperature:32 to 122 deg F
Resistance:40 MOhm
Resistance Accuracy:+/-1 %
Resolution:0.01 A, 0.1 A, 0.1 mV, 0.1 V, 1 V, 0.1 V, 1 V, 0.01 nF, 0.1 nF, 0.001 uF, 0.01 uF, 0.1 uF, 1 uF, 0.001 kOhm, 0.01 kOhm
Safety Rating:CAT III 600 V
Voltage Accuracy:+/-2%, +/-0.5%, +/-0.8%
Voltage Rating:750/1000 V
- Dual Display
- Test Lead Storage
- Min/Max/Hold
- High-voltage alert
- Easy access battery cover latches
- Raised molding
- Auto ranging
- Auto Off
- Low battery indicator
- 1-Year limited warranty
Product Details
UEi TEST INSTRUMENTS™ Clamp Meter, 750/1000 V, 400 A, 40 MOhm Resistance, 4000, LCD Display, AC Current Accuracy: +/-2.9%, +/-1.9%, Voltage Accuracy: +/-2%, +/-0.5%, +/-0.8%, CAT III 600 V, 32 to 122 deg F Operating Temperature, 4000 uF, 3.5 % Capacitance Accuracy, <80 % Humidity Rating, +/-1 % Resistance Accuracy, 0.01 A, 0.1 A, 0.1 mV, 0.1 V, 1 V, 0.1 V, 1 V, 0.01 nF, 0.1 nF, 0.001 uF, 0.01 uF, 0.1 uF, 1 uF, 0.001 kOhm, 0.01 kOhm Resolution, 8.7 x 2.52 x 1.41 in
The UEi DL569 is a 400A entry-level dual display HVAC/R clamp meter. Each meter includes a set of standard test leads, threaded alligator clips for hands-free testing, and a zippered carrying pouch. The DL569 is safety rated at CAT IV 300V / CAT III 600V. Recently upgraded, the DL569 now features capacitance and microamps measurements in addition to existing functions such as AC/DC voltage, AC amps, and resistance. DL569 is backed by a 1-Year limited warranty.
Attributes
AC Current Accuracy:Â +/-2.9%, +/-1.9%
Amperage Rating:Â 400 A
Capacitance:Â 4000 uF
Capacitance Accuracy:Â 3.5 %
Counts:Â 4000
Dimensions:Â 8.7 x 2.52 x 1.41 in
Display Type:Â LCD
Humidity Rating:Â <80 %
Operating Temperature:Â 32 to 122 deg F
Resistance:Â 40 MOhm
Resistance Accuracy:Â +/-1 %
Resolution:Â 0.01 A, 0.1 A, 0.1 mV, 0.1 V, 1 V, 0.1 V, 1 V, 0.01 nF, 0.1 nF, 0.001 uF, 0.01 uF, 0.1 uF, 1 uF, 0.001 kOhm, 0.01 kOhm
Safety Rating:Â CAT III 600 V
Voltage Accuracy:Â +/-2%, +/-0.5%, +/-0.8%
Voltage Rating:Â 750/1000 V
Features
- Dual Display
- Test Lead Storage
- Min/Max/Hold
- High-voltage alert
- Easy access battery cover latches
- Raised molding
- Auto ranging
- Auto Off
- Low battery indicator
- 1-Year limited warranty
