AM STD 6066161.002 SELECTRONIC 1.6GPF WATER CLOSET FV
Product Details
Attributes
Features
Resources

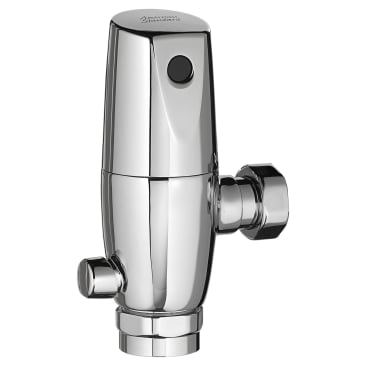

American Standard Dual Flush Valve, Exposed Sensor-Operated, Selectronic® Collection, Toilet Fixture, CR-P2 Lithium Battery Power Source, 1.6/1.1 gpf Flush, 1 in Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Piston Operated Valve Design, Connection Location: Top Spud, 15-3/4 to 31-1/2 in Sensor, 25 to 80 psi Pressure, Semi-Red Brass, Polished Chrome
The optional PWRX Long-Life Battery System features advanced battery and electronics for a 10 year battery life to reduce the downtime and maintenance costs associated with changing batteries.
- Self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance
- Dezincification-resistant semi-red brass alloy
- Selectronic® proximity system with universal sensor provides hygienic, hands-free operation
- State-of-the-Art electronics prevent ghost flushing
- Fully mechanical manual override button can flush the valve without power
- Fail-safe - valve automatically closes upon loss of power or water pressure and does not need to be reset
- Safety circuitry prevents overheating of the battery in case of short circuit, protecting the electronics
- Adjustable sanitary flush cleans the fixture and maintains the trap seal
- Chemical-resistant EPDM seals for long life
- High back pressure vacuum breaker
- Range can be adjusted manually
- No external volume adjustment
- Flow requirement - 25 gpm
- 25 psi for flowing
- 80 psi static
Product Details
American Standard Dual Flush Valve, Exposed Sensor-Operated, Selectronic® Collection, Toilet Fixture, CR-P2 Lithium Battery Power Source, 1.6/1.1 gpf Flush, 1 in Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Piston Operated Valve Design, Connection Location: Top Spud, 15-3/4 to 31-1/2 in Sensor, 25 to 80 psi Pressure, Semi-Red Brass, Polished Chrome
The optional PWRX Long-Life Battery System features advanced battery and electronics for a 10 year battery life to reduce the downtime and maintenance costs associated with changing batteries.
Attributes
Features
- Self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance
- Dezincification-resistant semi-red brass alloy
- Selectronic® proximity system with universal sensor provides hygienic, hands-free operation
- State-of-the-Art electronics prevent ghost flushing
- Fully mechanical manual override button can flush the valve without power
- Fail-safe - valve automatically closes upon loss of power or water pressure and does not need to be reset
- Safety circuitry prevents overheating of the battery in case of short circuit, protecting the electronics
- Adjustable sanitary flush cleans the fixture and maintains the trap seal
- Chemical-resistant EPDM seals for long life
- High back pressure vacuum breaker
- Range can be adjusted manually
- No external volume adjustment
- Flow requirement - 25 gpm
- 25 psi for flowing
- 80 psi static
