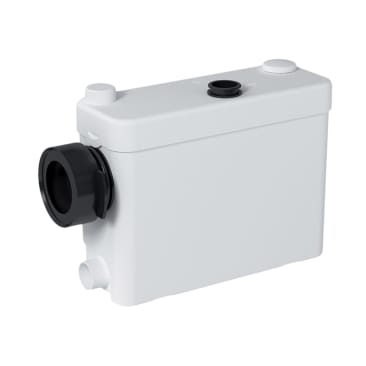

SANIFLO 011 SANIPACK PUMP FOR INWALL SYSTEM MACERATING
MFR Part #: 011
SKU #: 1180755
Brand: Saniflo®
UPC: 859925002114
Saniflo® Sanipak® 011 Macerator Pump, 110 V, 17 gpm at 15 ft, 27 gpm at 3 ft, 2 -Inlet, 1-1/2 in Inlet, 30 ft Max Head
For in wall frame system applications
CSA Certified|IAPMO Certified
Product Details
Attributes
Features
Resources
Saniflo® Sanipak® Macerator Pump, 110 V, 4.5 A, 60 Hz, 1/2 hp, 17 gpm at 15 ft, 27 gpm at 3 ft Flow Rate, 2 Inlets, 1-1/2 in Inlet, 30 ft Maximum Head, 3/4 in, 1 in Waste Discharge Pipe Diameter, 53 dBA Sound Level, Stainless Steel Blade, 104 deg F Maximum Incoming Temperature, 3.5 gal Tank, 19-1/2 in Overall Width, 5-3/4 in Overall Height, 18 in Overall Depth, Wall Mounting, Additional Information: For Use With Wall Hung Toilets
The Sanipack® is a 1/2 hp pump system used to install a complete bathroom up to 15 ft below the sewer line or even up to 150 ft away from a soil stack. It incorporates a macerating system which can handle human waste and toilet paper in residential applications. The blade is made out of a hardened stainless steel material which eliminates the need for any service or replacement.
Additional Information:For Use With Wall Hung Toilets
Amperage Rating:4.5 A
Blade Material:Stainless Steel
Dimensions:16-3/4 in W x 4-3/4 in D x 11 in H
Domestic/Import:Import
Flow Rate:17 gpm, 17 gpm at 15 ft, 27 gpm at 3 ft
Frequency Rating:60 Hz
Horsepower:.3 hp
HP Rating:1/2 hp
Inlet Size:1-1/2 in
Maximum Head:15 ft, 30 ft
Maximum Incoming Temperature:104 deg F
Motor Speed:3600 rpm
Mounting Type:Wall
Number of Inlets:2
Outlet Size:3/4 in
Overall Depth:18 in
Overall Height:5-3/4 in
Overall Width:19-1/2 in
Sound Level:53 dBA
Tank Capacity:3.5 gal
Temperature Rating:104 deg F
Voltage Rating:110 V, 115 VAC
Waste Discharge Pipe Diameter:3/4 in, 1 in
- Discharges the waste through a 3/4 or 1 in rigid pipe
- A non-return valve is included on the discharge elbow assembly provided with the system
- This elbow can be rotated 360 deg depending on the discharge installation
- Has been designed with a 1-1/2 in vent connection on the top of the lid, all plumbing codes require connection to a vent system
- This pump is designed to be connected to any wall-hung toilet (not supplied by Saniflo)
- Will also discharge gray water from any sink, shower or urinal
- The wastewater will drain into the system via two 1-1/2 in inlets with built-in check valves on either side of the housing
Product Details
Saniflo® Sanipak® Macerator Pump, 110 V, 4.5 A, 60 Hz, 1/2 hp, 17 gpm at 15 ft, 27 gpm at 3 ft Flow Rate, 2 Inlets, 1-1/2 in Inlet, 30 ft Maximum Head, 3/4 in, 1 in Waste Discharge Pipe Diameter, 53 dBA Sound Level, Stainless Steel Blade, 104 deg F Maximum Incoming Temperature, 3.5 gal Tank, 19-1/2 in Overall Width, 5-3/4 in Overall Height, 18 in Overall Depth, Wall Mounting, Additional Information: For Use With Wall Hung Toilets
The Sanipack® is a 1/2 hp pump system used to install a complete bathroom up to 15 ft below the sewer line or even up to 150 ft away from a soil stack. It incorporates a macerating system which can handle human waste and toilet paper in residential applications. The blade is made out of a hardened stainless steel material which eliminates the need for any service or replacement.
Attributes
Additional Information: For Use With Wall Hung Toilets
Amperage Rating: 4.5 A
Blade Material: Stainless Steel
Dimensions: 16-3/4 in W x 4-3/4 in D x 11 in H
Domestic/Import: Import
Flow Rate: 17 gpm, 17 gpm at 15 ft, 27 gpm at 3 ft
Frequency Rating: 60 Hz
Horsepower: .3 hp
HP Rating: 1/2 hp
Inlet Size: 1-1/2 in
Maximum Head: 15 ft, 30 ft
Maximum Incoming Temperature: 104 deg F
Motor Speed: 3600 rpm
Mounting Type: Wall
Number of Inlets: 2
Outlet Size: 3/4 in
Overall Depth: 18 in
Overall Height: 5-3/4 in
Overall Width: 19-1/2 in
Sound Level: 53 dBA
Tank Capacity: 3.5 gal
Temperature Rating: 104 deg F
Voltage Rating: 110 V, 115 VAC
Waste Discharge Pipe Diameter: 3/4 in, 1 in
Features
- Discharges the waste through a 3/4 or 1 in rigid pipe
- A non-return valve is included on the discharge elbow assembly provided with the system
- This elbow can be rotated 360 deg depending on the discharge installation
- Has been designed with a 1-1/2 in vent connection on the top of the lid, all plumbing codes require connection to a vent system
- This pump is designed to be connected to any wall-hung toilet (not supplied by Saniflo)
- Will also discharge gray water from any sink, shower or urinal
- The wastewater will drain into the system via two 1-1/2 in inlets with built-in check valves on either side of the housing
