WATTS 0009257 3/4 PRV DU PEX X PEX LF25AUB-Z3
MFR Part #:Â 0009257
SKU #:Â 1283570
Brand: WATTS®
UPC:Â 098268329704

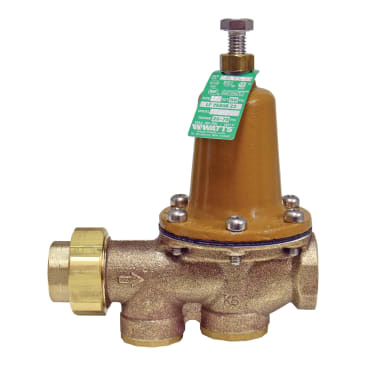

WATTS® 0009257 3/4 IN Lead Free Water Pressure Reducing Valve, NPT Female Union x NPT Female, Polymer Seat, Adjustable Pressure Range 25-75 psi
ASSE 1003 Compliant | ANSI A112.26.2 Compliant | CSA B356 Compliant | Southern Standard Plumbing Code Compliant | IAPMO Listed | MIL-V-18146B Type I Compliant
Product Details
Attributes
Features
Resources
WATTS® 0009257 Water Pressure Reducing Valve, Lead Free, 3/4 in, 300 psi Rating, 25 to 75 psi Pressure Range, Copper Silicon Alloy Body, Female NPT Union x Female NPT Connection, Series LF25AUB-Z3, 33 to 180 deg F
This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial, and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The standard pressure setting is 50 psi (345 kPa) with maximum working pressure at 300 psi (20.7 bar).
End Style:Female NPT Union x Female NPT
Nominal Size:3/4 in
Pressure Range:25 to 75 psi
Body Material:Copper Silicon Alloy
Lead Free:Y
Pressure Rating:300 psi
Series:LF25AUB-Z3
Temperature Range:33 to 180 deg F
- Bypass feature controls thermal expansion pressure
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
Product Details
WATTS® 0009257 Water Pressure Reducing Valve, Lead Free, 3/4 in, 300 psi Rating, 25 to 75 psi Pressure Range, Copper Silicon Alloy Body, Female NPT Union x Female NPT Connection, Series LF25AUB-Z3, 33 to 180 deg F
This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial, and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The standard pressure setting is 50 psi (345 kPa) with maximum working pressure at 300 psi (20.7 bar).
Attributes
End Style:Â Female NPT Union x Female NPT
Nominal Size:Â 3/4 in
Pressure Range:Â 25 to 75 psi
Body Material:Â Copper Silicon Alloy
Lead Free:Â Y
Pressure Rating:Â 300 psi
Series:Â LF25AUB-Z3
Temperature Range:Â 33 to 180 deg F
Features
- Bypass feature controls thermal expansion pressure
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
