WATTS 0121408 LF40L-2 1 IP 210F 125PSI TEMPERATURE & PRESSURE VALVE
Product Details
Attributes
Features
Resources

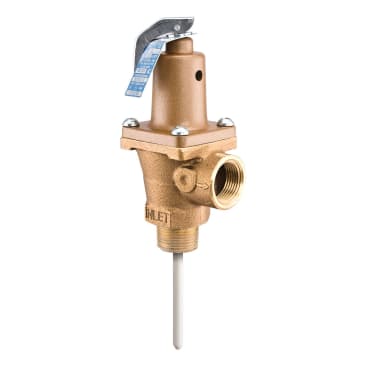

WATTS®, 0121408, Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF40L, 1 in Nominal, MNPT x FNPT End Style, 210 deg F, Media: Water, 2-3/4 in W x 6-1/4 in H Dimensions
This 1 in lead free automatic reseating temperature and pressure relief valve with a 3 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features lead free construction with MNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg F and the pressure relief is 125 psi.
- Lead free construction
- Non-mechanical seat-to-disc alignment
- Tamper resistant bonnet screws
- 3 in L thermostat
- Unique thermostat with a special thermo-bonded coating
- 180000 Btu/hr steam rating
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 125 psi standard pressure settings
Product Details
WATTS®, 0121408, Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF40L, 1 in Nominal, MNPT x FNPT End Style, 210 deg F, Media: Water, 2-3/4 in W x 6-1/4 in H Dimensions
This 1 in lead free automatic reseating temperature and pressure relief valve with a 3 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features lead free construction with MNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg F and the pressure relief is 125 psi.
Attributes
Features
- Lead free construction
- Non-mechanical seat-to-disc alignment
- Tamper resistant bonnet screws
- 3 in L thermostat
- Unique thermostat with a special thermo-bonded coating
- 180000 Btu/hr steam rating
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 125 psi standard pressure settings
