WATTS 0121431 LFLL40XL 1 IP 210F 150PSI 3 EXTENDED TEMPERATURE & PRESSURE VALVE
Product Details
Attributes
Features
Resources

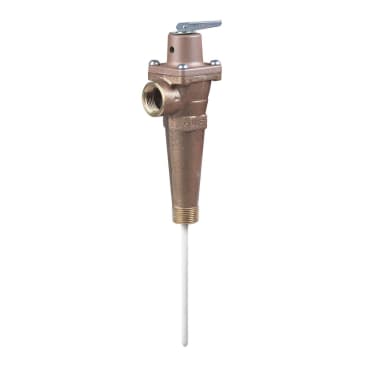

WATTS®, 0121431, Temperature/Pressure Relief Valve, Automatic Reseating, Series: LFLL40, 1 in Nominal, MNPT x FNPT End Style, 210 deg F, Media: Water, Cast Copper Silicon Alloy Body, 2.64 in W x 6.66 in H Dimensions
This 1 in lead free automatic reseating temperature and pressure relief valve has a 1-21/32 in extended shank and 3-1/2 in thermostat that is installed directly in tank tapings. It is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features lead free construction with MNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, automatic reseating feature, tamper resistant bonnet screws and test lever. The temperature relief is 210 deg F and the pressure relief is 150 psi.
- 1-25/32 in extended shank
- Unique thermostat with special thermo-bonded coating
- Tamper resistant bonnet screws
- 3-1/2 in L thermostat
- Non-mechanical seat-to-disc alignment
- Thermostat is accurate and proven
- Exclusively designed by WATTS®
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Extended shank
- 150 psi standard pressure settings
Product Details
WATTS®, 0121431, Temperature/Pressure Relief Valve, Automatic Reseating, Series: LFLL40, 1 in Nominal, MNPT x FNPT End Style, 210 deg F, Media: Water, Cast Copper Silicon Alloy Body, 2.64 in W x 6.66 in H Dimensions
This 1 in lead free automatic reseating temperature and pressure relief valve has a 1-21/32 in extended shank and 3-1/2 in thermostat that is installed directly in tank tapings. It is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features lead free construction with MNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, automatic reseating feature, tamper resistant bonnet screws and test lever. The temperature relief is 210 deg F and the pressure relief is 150 psi.
Attributes
Features
- 1-25/32 in extended shank
- Unique thermostat with special thermo-bonded coating
- Tamper resistant bonnet screws
- 3-1/2 in L thermostat
- Non-mechanical seat-to-disc alignment
- Thermostat is accurate and proven
- Exclusively designed by WATTS®
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Extended shank
- 150 psi standard pressure settings
