WATTS 0121450 LF140S-3 1 IP 210F 125PSI TEMPERATURE & PRESSURE VALVE WITH STAINLESS STEEL TUBE
Product Details
Attributes
Features
Resources

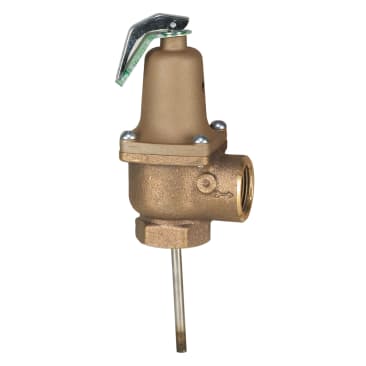

WATTS®, 0121450, Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF140, 1 in Nominal, FNPT End Style, 210 deg F, Media: Water, 3 in W x 5-3/4 in H Dimensions
This 1 in lead free automatic reseating temperature and pressure relief valve with a 3 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free construction body with FNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg F and the pressure relief is 125 psi.
- Lead free cast brass construction
- Non-mechanical seat-to-disc alignment
- Tamper resistant bonnet screws
- 3 Inch thermostat length
- 180000 Btu/hr steam rating
- Furnished with stainless steel thermostat
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 125 psi standard pressure settings
Product Details
WATTS®, 0121450, Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF140, 1 in Nominal, FNPT End Style, 210 deg F, Media: Water, 3 in W x 5-3/4 in H Dimensions
This 1 in lead free automatic reseating temperature and pressure relief valve with a 3 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free construction body with FNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg F and the pressure relief is 125 psi.
Attributes
Features
- Lead free cast brass construction
- Non-mechanical seat-to-disc alignment
- Tamper resistant bonnet screws
- 3 Inch thermostat length
- 180000 Btu/hr steam rating
- Furnished with stainless steel thermostat
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 125 psi standard pressure settings
