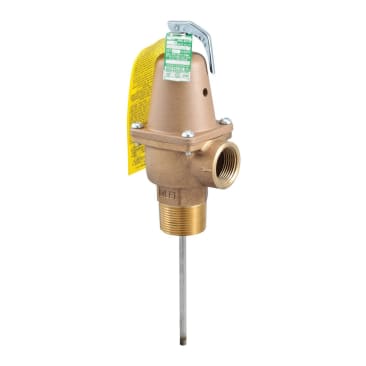

WATTS 0318835 N241X-8 1-1/4 210F 125PSI TEMPERATURE & PRESSURE VALVE
Product Details
Attributes
Features
Resources
WATTS®, 0318835, Temperature/Pressure Relief Valve, Automatic Reseating, Series: N240, 1-1/4 x 1 in Nominal, MNPT x FNPT End Style, 210 deg F, Media: Water, Spring-Loaded Latch-Lock Handle Actuator, Bronze Body, 3-1/4 in W x 7-3/8 in H Dimensions
This 1-1/4 in bronze automatic reseating temperature and pressure relief valve with an 8 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with MNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg F and the pressure relief is 125 psi.
- Non-mechanical seat-to-disc alignment
- Thermostat is accurate and proven
- Exclusively designed and manufactured by WATTS®
- Tamper resistant bonnet screws
- 8 Inch thermostat length
- 730000 Btu/hr steam rating
- Stainless steel spring
- Furnished with stainless steel thermostat
- 125 psi standard pressure settings
Product Details
WATTS®, 0318835, Temperature/Pressure Relief Valve, Automatic Reseating, Series: N240, 1-1/4 x 1 in Nominal, MNPT x FNPT End Style, 210 deg F, Media: Water, Spring-Loaded Latch-Lock Handle Actuator, Bronze Body, 3-1/4 in W x 7-3/8 in H Dimensions
This 1-1/4 in bronze automatic reseating temperature and pressure relief valve with an 8 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with MNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg F and the pressure relief is 125 psi.
Attributes
Features
- Non-mechanical seat-to-disc alignment
- Thermostat is accurate and proven
- Exclusively designed and manufactured by WATTS®
- Tamper resistant bonnet screws
- 8 Inch thermostat length
- 730000 Btu/hr steam rating
- Stainless steel spring
- Furnished with stainless steel thermostat
- 125 psi standard pressure settings
