MAS 013-55500 1/2 COMPRESSION BALL VALVE B-5C-LF
MFR Part #: 013-55500
SKU #: 3268593
Brand: MAS™
UPC: 620790350071

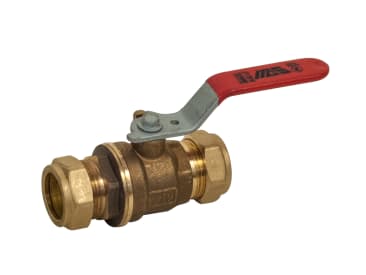

MAS 013-55500 Lead Free Forged Brass Ball Valve with Compression Ends, 1/2 in, 600 psi WOG, B Series, B-5-C-LF
3 Year MAS Valve Limited Warranty
ANSI B1.20.1 Compliant | NACE MR-0175 / ISO 15156 Compliant | NACE MR-0103 Compliant
Attributes
Features
Resources
Connection Type:Compression
Inlet to Outlet Length:2.95 in
Nominal Size:1/2 in
Operator Type:Lever
Pressure Rating:600 psi WOG, 500 psi
Ball Material:Brass
Body Material:Brass
Dimensions:0.65 in Dia
Domestic/Import:Import
Flow Coefficient (Cv):15 Cv
Handle Material:Steel
Lead Free:Yes
Material Standard:ASTM B283 C37700, ASTM B124 C37700, ASTM B124 C37700, ASTM A36
Model:B-5-C-LF
Number of Handles:1
Port Type:Full
Seat Material:PTFE
Series:B Series
Softgoods Material:NBR
Stem Material:Brass
Temperature Rating:200 deg F
Top to Inlet Center:1.77 in
Valve Type:Ball
- Forged 2 piece construction
- Full port
- Compression ends for use with type K L & M copper tube
- Blowout-proof stem
- Chrome plated ball
- Class 150, 600 WOG (1/2” & 3/4”) 500 WOG (1”)
Attributes
Connection Type: Compression
Inlet to Outlet Length: 2.95 in
Nominal Size: 1/2 in
Operator Type: Lever
Pressure Rating: 600 psi WOG, 500 psi
Ball Material: Brass
Body Material: Brass
Dimensions: 0.65 in Dia
Domestic/Import: Import
Flow Coefficient (Cv): 15 Cv
Handle Material: Steel
Lead Free: Yes
Material Standard: ASTM B283 C37700, ASTM B124 C37700, ASTM B124 C37700, ASTM A36
Model: B-5-C-LF
Number of Handles: 1
Port Type: Full
Seat Material: PTFE
Series: B Series
Softgoods Material: NBR
Stem Material: Brass
Temperature Rating: 200 deg F
Top to Inlet Center: 1.77 in
Valve Type: Ball
Features
- Forged 2 piece construction
- Full port
- Compression ends for use with type K L & M copper tube
- Blowout-proof stem
- Chrome plated ball
- Class 150, 600 WOG (1/2” & 3/4”) 500 WOG (1”)
