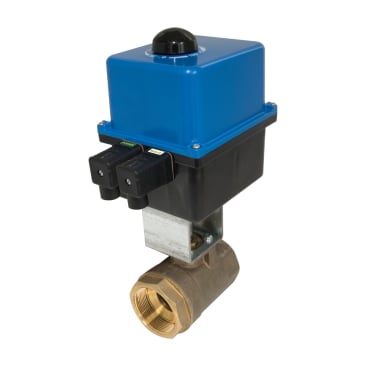

WATTS 0123426 LFEMVII6400SS 1-1/4 115V 35 SECOND ELECTRIC MOTOR VALVE
Product Details
Attributes
Features
Resources
WATTS® Electric Motor Valve, 2-Piece, Series: LFEMVII-6400SS, 1-1/4 in Nominal, 24 V AC, 600 psi, 100 lb, 150 deg F, Full Port, Media: Water, 3-15/16 in Inlet to Outlet Length, 4-3/16 in Top to Inlet Center, Bronze Body, Stainless Steel Trim, Durafill® PTFE
Series LFEMVII-6400-SS Electric Motor Valves are used in commercial HVAC zone control and light industrial applications. It consists of a bronze body construction, vented stainless steel ball, standard position indicator, adjustable packing, blowout-proof stainless steel stem, and bubble-tight shutoff. Series LFEMVII-6400-SS has a manual override, comes completely assembled, and is mountable in any position (horizontal position in steam applications). It is ideal for hot water or steam space heating applications, for controlling process liquids or gases (i.e., steam, water, or air), or eliminating water from compressed air lines and systems. Pressure Rating: For 1/4 to 2 in. - 600psi WOG (non-shock).
- Power consumption is 115 V with a 35 s cycle time
- 316 stainless steel ball and stem Bottom loaded blowout, proof stem
- Durafill® PTFE seats
- Hole in stem slot of each ball valve to equalize pressure between the body cavity and the flow stream
- 115 VAC or 24 VAC motor
- Standard auxiliary SPDT switch, 10 amps rating at 115 VAC
- Adjustable cam provides the capability of properly aligning the ball in both the open and closed position using a single, simple adjustment
- Accessible, clearly marked integral terminal strip assures fast, easy wiring
- Standard position indicator
- Manual override standard
- Motor can be changed without draining system
- Completely assembled and mountable in any position
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 4 Amps maximum at 18 sec cycle time
Product Details
WATTS® Electric Motor Valve, 2-Piece, Series: LFEMVII-6400SS, 1-1/4 in Nominal, 24 V AC, 600 psi, 100 lb, 150 deg F, Full Port, Media: Water, 3-15/16 in Inlet to Outlet Length, 4-3/16 in Top to Inlet Center, Bronze Body, Stainless Steel Trim, Durafill® PTFE
Series LFEMVII-6400-SS Electric Motor Valves are used in commercial HVAC zone control and light industrial applications. It consists of a bronze body construction, vented stainless steel ball, standard position indicator, adjustable packing, blowout-proof stainless steel stem, and bubble-tight shutoff. Series LFEMVII-6400-SS has a manual override, comes completely assembled, and is mountable in any position (horizontal position in steam applications). It is ideal for hot water or steam space heating applications, for controlling process liquids or gases (i.e., steam, water, or air), or eliminating water from compressed air lines and systems. Pressure Rating: For 1/4 to 2 in. - 600psi WOG (non-shock).
Attributes
Features
- Power consumption is 115 V with a 35 s cycle time
- 316 stainless steel ball and stem Bottom loaded blowout, proof stem
- Durafill® PTFE seats
- Hole in stem slot of each ball valve to equalize pressure between the body cavity and the flow stream
- 115 VAC or 24 VAC motor
- Standard auxiliary SPDT switch, 10 amps rating at 115 VAC
- Adjustable cam provides the capability of properly aligning the ball in both the open and closed position using a single, simple adjustment
- Accessible, clearly marked integral terminal strip assures fast, easy wiring
- Standard position indicator
- Manual override standard
- Motor can be changed without draining system
- Completely assembled and mountable in any position
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 4 Amps maximum at 18 sec cycle time
