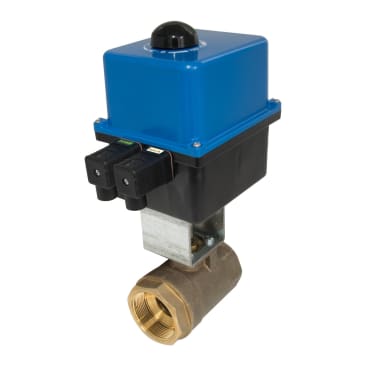

WATTS 0123851 LFEMVII6400SS24-68 1-1/2 24V 40 SEC ELECTRIC MOTOR VALVE
Product Details
Attributes
Features
Resources
WATTS® Electric Motor Valve, 2-Piece, Series: LFEMVII-6400SS, 1-1/2 in Nominal, 24 V AC, FNPT, 600 psi, 100 lb, -40 to 150 deg F, Standard Port, Media: Water, Electrical Actuator, 4-5/16 in Inlet to Outlet Length, 9-1/8 in Top to Inlet Center, Bronze Body, Durafill® PTFE/316 Stainless Steel Trim, Durafill® PTFE, 5.44 in L x 4.44 in W
The 1 1/2 inch electric motor valve is used in commercial HVAC and light industrial systems. It is ideal for applications such as a zone control valve for space heating with hot water or steam and air conditioning with chilled water. It's remotely operated for controlling the flow of steam, water, or air. Can be used as a drain or a blown down valve to eliminate water from compressed air lines and systems. It features a 2 pc standard port lead free copper silicon alloy motorized ball valve that consist of an electrically actuated motor 24 VAC, 316 stainless steel ball, bottom loaded blowout proof stem, standard position indicator, adjustable PTFE packing, Durafill (R) PTFE seals and bubble-tight shutoff. It has a manual override standard, comes completely assembled and mountable in any position (horizontal position in steam applications). Pressure rating is 600 psi WOG (non-shock) and 100 psi (7 bar) WSP. Maximum ambient temperature is 150 F (66 C). It has a 68 second cycle time.
- Power consumption is 24 Vage with a 68 second cycle time
- Hole in stem slot of each ball valve to equalize pressure between the body cavity and the flow stream
- Adjustable cam provides the capability of properly aligning the ball in both the open and closed position using a single, simple adjustment
