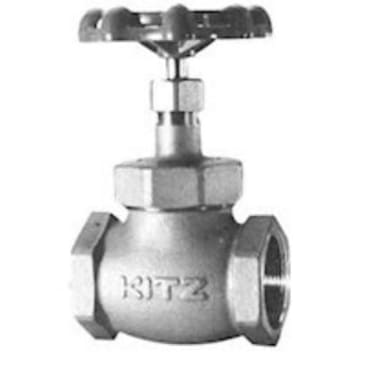

KITZ 052-22302 1-1/4 IP BRZ GLOBE VLV 03
Product Details
Attributes
Features
Resources
KITZ Globe Valve, 03 Series, 1-1/4 in Nominal, FNPT Connection, 200 psi, Pressure Class: 125 lb, Gas, Non-Shock Cold Water, Oil, Saturated Steam Media, Handwheel Actuator, 3.46 in Inlet to Outlet Length, 5.51 in Top to Inlet Center, Bronze Body, Brass Stem, PTFE Disc, Graphite Packing, Aluminum Handle, Handwheel Operator, Bonnet Mounting, 15 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B584 C84400, ASTM B85
- Integral seat
- Union bonnet
- Rising stem
Product Details
KITZ Globe Valve, 03 Series, 1-1/4 in Nominal, FNPT Connection, 200 psi, Pressure Class: 125 lb, Gas, Non-Shock Cold Water, Oil, Saturated Steam Media, Handwheel Actuator, 3.46 in Inlet to Outlet Length, 5.51 in Top to Inlet Center, Bronze Body, Brass Stem, PTFE Disc, Graphite Packing, Aluminum Handle, Handwheel Operator, Bonnet Mounting, 15 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B584 C84400, ASTM B85
Attributes
Features
- Integral seat
- Union bonnet
- Rising stem
