TACO 335-3 PRESSURE REDUCING VALVE
MFR Part #: 335-3
SKU #: 1308029
Brand: Taco® Comfort Solutions™
UPC: 687752022322

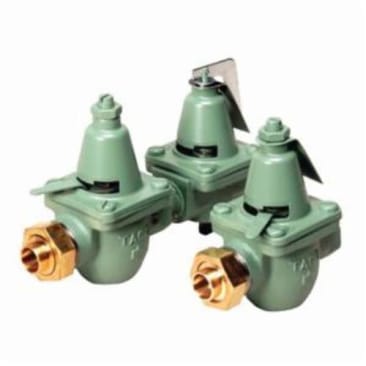

Taco® 335-3 335 Pressure Reducing Boiler Feed Valve, 3/4 in Nominal, C x NPT End Style, 100 psi Pressure, Bronze Body
1 Year
2 Keys and Mounting Kit
For Heating
Product Details
Attributes
Features
Resources
Taco®, 335-3, Boiler Feed Valve, Pressure Reducing, Series: 335, 3/4 in Nominal, C x NPT End Style, 100 psi Pressure, 212 deg F, 3-3/4 in Inlet to Outlet Length, 3-3/4 in Top to Inlet Center, Bronze Body, White, 3-3/4 in H x 3-3/4 in W Dimensions
Taco Boiler Feed Valves automatically feed water to a system whenever pressure in the system drops below the pressure setting of the valve. The Dual Control models combine the boiler feed with an in-line pressure relief valve. The built-in check prevents emptying the system if incoming pressure falls. They feature fast fill rates and an exclusive, lockable fast fill lever.
Body Material:Bronze
Color:White
Dimensions:3-3/4 in H x 3-3/4 in W
End Style:C x NPT
Inlet to Outlet Length:3-3/4 in
Nominal Size:3/4 in
Pressure Rating:100 psi
Series:335
Temperature Rating:212 deg F
Top to Inlet Center:3-3/4 in
Type:Pressure Reducing
- Fast fill rate on all models
- Exclusive fast fill lever lock
- Built-in check to prevent emptying the system if incoming pressure fails
- Adjustable set pressure of 10 to 25 psi
- Pressure setting adjustment separated from fast fill lever for easy, fast adjustment
- 12 psi factory setting of system side
- Factory Set at 12 psi pressure set point
- Feeds water into a hot water heating system whenever pressure drops below the valves setting
- Union connection with tailpiece is standard
Product Details
Taco®, 335-3, Boiler Feed Valve, Pressure Reducing, Series: 335, 3/4 in Nominal, C x NPT End Style, 100 psi Pressure, 212 deg F, 3-3/4 in Inlet to Outlet Length, 3-3/4 in Top to Inlet Center, Bronze Body, White, 3-3/4 in H x 3-3/4 in W Dimensions
Taco Boiler Feed Valves automatically feed water to a system whenever pressure in the system drops below the pressure setting of the valve. The Dual Control models combine the boiler feed with an in-line pressure relief valve. The built-in check prevents emptying the system if incoming pressure falls. They feature fast fill rates and an exclusive, lockable fast fill lever.
Attributes
Body Material: Bronze
Color: White
Dimensions: 3-3/4 in H x 3-3/4 in W
End Style: C x NPT
Inlet to Outlet Length: 3-3/4 in
Nominal Size: 3/4 in
Pressure Rating: 100 psi
Series: 335
Temperature Rating: 212 deg F
Top to Inlet Center: 3-3/4 in
Type: Pressure Reducing
Features
- Fast fill rate on all models
- Exclusive fast fill lever lock
- Built-in check to prevent emptying the system if incoming pressure fails
- Adjustable set pressure of 10 to 25 psi
- Pressure setting adjustment separated from fast fill lever for easy, fast adjustment
- 12 psi factory setting of system side
- Factory Set at 12 psi pressure set point
- Feeds water into a hot water heating system whenever pressure drops below the valves setting
- Union connection with tailpiece is standard
