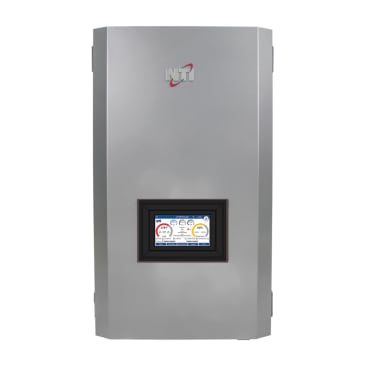

NTI 3260134TFTN085 85MBH BOILER FIRE-TUBE NATURAL GAS/PROPANE
Product Details
Attributes
Features
Resources
NTI Fire Tube Boiler, TFTN Series, 120 V, 12 A, 60 Hz Frequency, 1 ph, 96 % AFUE, 85 MBtu/hr BTU, 1.4 gal Capacity, 50 psi Pressure, 1-1/4 in MNPT Connection, Direct Vent, Modulating Burner, Chimney/Breeching/Vent Size: 2 in, 3 in, Spark Ignition, Net BTU Rating: 69 MBtu/hr, Wall Mounting, Dimensions: 42-3/4 in H x 19-7/8 in W x 17-3/8 in D, Additional Information: 3/4 in MNPT Gas Connection
NTI is pleased to offer the next generation of our flagship boiler line. The new TFTN offers onboard WiFi and a new touchscreen that brings more functionality than previously available. Our new control is designed to be easy and intuitive, yet powerful enough to offer all the features and functionality required by today's installing contractor. Built on the same platform as our market-leading TFT line, this next generation brings the same high-level of quality you've come to expect, with the added benefits of our redesigned control. Our next generation TFTN is currently available in sizes 85, 110, 150 and 199 MBH. Larger sizes from 285 to 850 MBH are available fo commercial applications.
- EZ Setup Wizard - programming your boiler has never been easier
- Remote Monitoring and Diagnostics - remote access for programming and troubleshooting
- Easy-to-read full color graphics
- Top and Bottom plumbing connections for easy installation
- Built-in Low Water Cutoff, saving time and money
- 120v convenience outlet
- Built-in zone control - up to 3 Heating zones plus Domestic Hot Water (Expandable to six heating zones using the optional N-Link Zone Expansion Module - part # 87633-1)
- Modulating burner, 10:1 turndown ratio
- Certified as Direct Vent or for use with indoor combustion air
- Sealed cabinet with integrated silencer and air-filter
- 7 in. touch screen display
- High energy ignition transformer (spark ignition)
- Integrated LWCO (UL353 certified)
- Wi-Fi remote connectivity embedded
- Integrated 3-Zone controller (3x CH inputs & outputs)
- DHW zone input (tank thermostat or sensor)
- Outdoor and 2x Auxiliary temperature sensor inputs
- 0-10V input for external temperature or burner power control
- Boiler, DHW and 2x Auxiliary pump outputs
- Variable speed pump output (0-10V / PWM)
