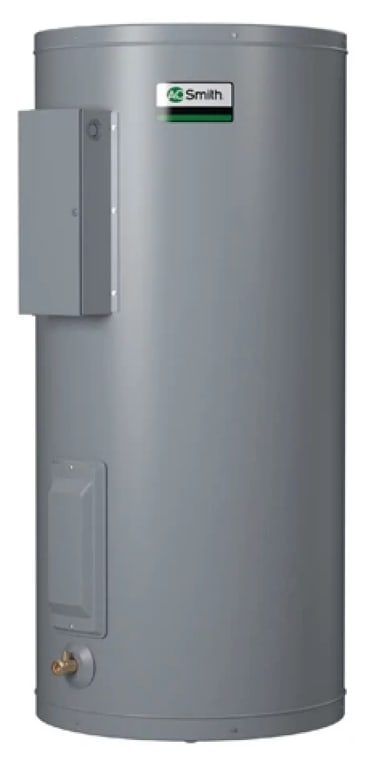

AO SMITH DEJC-5010480 50USG 10KW 480V 1/3-PHASE ELECTRIC WATER HEATER
MFR Part #: DEJC-5010480
SKU #: 3290124
Brand: A.O. Smith®
A.O. Smith® DEJC-5010480 Dura-Power™ Commercial Electric Water Heater, 2 Elements, 49 USG Capacity, 10 kW, 480V, 1/3 Phase, Glasslined Tank, Medium Watt Density Elements, Side Inlets
3-Years Limited Tank and 1-Year Limited Parts Warranty
AHRI Certified | cULus Listed | Low-Lead Compliant
Product Details
Attributes
Features
Resources
Designed for use as a recovery heater having its own storage tank.
Input:10 kW
Number of Elements:2
Phase:1/3 ph
Standby Loss:77 W
Tank Capacity:49 USG
Voltage:480 V
Working Pressure:150 psi
- 49 USG commercial storage capacity
- 10 kW electric input
- 480V, 1/3 phase electrical configuration
- Two-element commercial electric design
- Glasslined tank for long service life
- Zinc-plated copper sheaths for longer element life
- Medium watt density helps lower surface temperature and minimize scale build-up
- Anode rod for maximum corrosion protection
- Factory-installed heat trap nipples
- CSA-certified and ASME-rated T&P relief valve
- Colour-coded circuitry for easier service
- Baked enamel cabinet finish
Product Details
Designed for use as a recovery heater having its own storage tank.
Attributes
Input: 10 kW
Number of Elements: 2
Phase: 1/3 ph
Standby Loss: 77 W
Tank Capacity: 49 USG
Voltage: 480 V
Working Pressure: 150 psi
Features
- 49 USG commercial storage capacity
- 10 kW electric input
- 480V, 1/3 phase electrical configuration
- Two-element commercial electric design
- Glasslined tank for long service life
- Zinc-plated copper sheaths for longer element life
- Medium watt density helps lower surface temperature and minimize scale build-up
- Anode rod for maximum corrosion protection
- Factory-installed heat trap nipples
- CSA-certified and ASME-rated T&P relief valve
- Colour-coded circuitry for easier service
- Baked enamel cabinet finish
