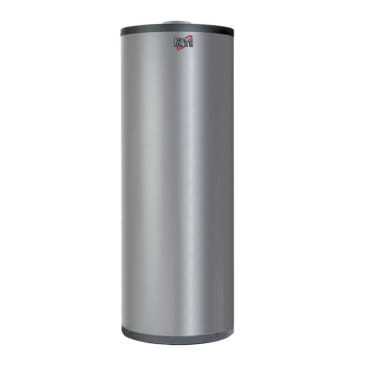

NTI 3260121 S50 TRIN & STOR 50 GALLON STAINLESS STEEL SINGLE COIL
MFR Part #:Â S50
SKU #:Â 1212418
Brand:Â NTI
UPC:Â 628233732521
NTI S50 S Series Indirect Water Heater, 180 MBtu/hr Heating, 53 gal Tank
Limited Lifetime
Product Details
Attributes
Features
Resources
NTI Indirect Water Heater, Series: S Series, 180 MBtu/hr Heating, 53 gal Tank, 10 gpm, 3/4 in Water Connection, 211 gal at 140 deg F Recovery, 150 psi, 190 deg F Tank/210 deg F Boiler, Ultra Low Nox: No, 444 Stainless Steel, 23-7/8 in Dia x 49 in H
Dimensions:23-7/8 in Dia x 49 in H
Flow Rate:10 gpm
Heating Capacity:180 MBtu/hr
Tank Capacity:53 gal
Material:444 Stainless Steel
Pressure Rating:150 psi
Recovery Rate:211 gal at 140 deg F
Series:S Series
Temperature Rating:190 deg F Tank/210 deg F Boiler
Ultra Low NOx:No
Water Connection:3/4 in
Water Heater Type:Gas
- Tank and coil is constructed out of type 444 stainless steel
- Tanks are completely pickled, rinsed and passivated inside and outside to remove all surface contaminations and restore the chromium oxide layer of the stainless steel surface
- Fittings are constructed out of type 316L stainless steel
- Lead free construction
- Insulated with CFC free 2 inch thick Expanded Polystyrene (EPS) foam
- Outer shell is constructed out of durable grey plastic
- 3/4 in FNPT temperature and pressure relief valve connection
- Stainless steel well for insertion of tank sensor or aquastat
- Tank sensor incorporates a 10K thermistor and a UL353 rated normally closed safety switch
- Tank sensor connects directly to a Vmax or Trinity Tft, Tx or Lx boiler
- Tank sensor allows the tank temperature to be controlled from the boiler
- Endless hot water
- Life-long operation
- Combine with a solar system
