ILSCO CPM-1 #1 COPPER PIGTAIL CONNECTOR
MFR Part #: CPM-1
SKU #: 3057943
Brand: ILSCO®
UPC: 783669008463
ILSCO® ClearChoice® CPM-1 Dual Rated Pigtail Adapter With Insulating Cover, 1 AWG Conductor, Die Code: 9, 0.258 in Dia x 1 in L Pin, Aluminum/Copper
For terminating connector
UL 486A-B File No. E62525 | CSA File No. LR29601 | ECCN EAR99 | PROP65: Cancer - www.p65warnings.ca.gov
Product Details
Features
Resources

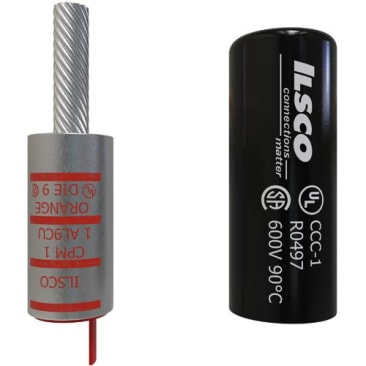

ILSCO® ClearChoice® Pigtail Adapter, Dual Rated, Series: CPM, 1 AWG Conductor, Die Code: 9, Orange Color Code, 0.258 in Pin Diameter, 1 in Pin Length, 1.344 in Barrel Length, 600 V AC, Specifications: 1-11/16 in L Cover, 3 AWG Pin, 23/64 in ID x 21/32 in OD, Aluminum/Copper, 2-1/8 in W Dimensions
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX® prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
