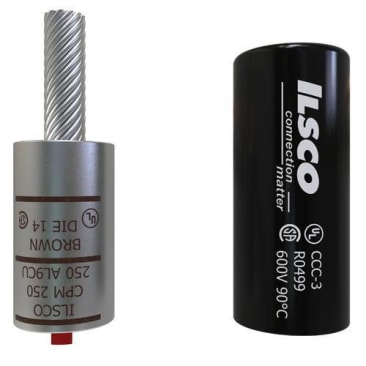

ILSCO CPM-250 250MCM COPPER PIGTAIL CONNECTOR
MFR Part #: CPM-250
SKU #: 3057948
Brand: ILSCO®
UPC: 783669008562
ILSCO® ClearChoice® CPM-250 Dual Rated Pigtail Adapter With Insulating Cover, 250 kcmil Conductor, Die Code: 14, 0.47 in Dia x 1-1/2 in L Pin, Aluminum/Copper
For terminating connector
UL 486A-B File No. E62525 | CSA File No. LR29601 | ECCN EAR99 | PROP65: Cancer - www.p65warnings.ca.gov
Product Details
Features
Resources
ILSCO® ClearChoice® Pigtail Adapter, Dual Rated, Series: CPM, 250 kcmil Conductor, Die Code: 14, Brown Color Code, 0.47 in Pin Diameter, 1-1/2 in Pin Length, 1.938 in Barrel Length, 600 V AC, Specifications: 2.846 in L Cover, 3/0 AWG Pin Size, 39/64 in ID x 1-5/32 in OD, Aluminum/Copper, 3.438 in W Dimensions
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX® prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
