750MCM 2 HOLE ALUM COMP LUG ILSCO 2ACL-750
MFR Part #: 2ACL-750
SKU #: 3053001
Brand: ILSCO®
Please note this item is discontinued (order fulfillment will depend on stock availability): ILSCO® ClearChoice® 2ACL-750 2ACL 2-Hole Compression Lug, 750 kcmil, Die Code: 18, 1/2 in Stud, Aluminum
2 mounting holes, Expanded conductor size of 750 kcmil-500 kcmil
For Terminating Connector
UL 486A-B | UL File No. E6207 | CSA File No. LR-29601 | RoHS Compliant
Product Details
Attributes
Features

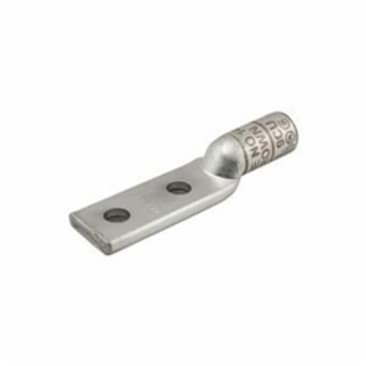

ILSCO® ClearChoice® Compression Lug, 2-Hole, Series: 2ACL, 750 kcmil Conductor, Die Code: 18, 600 V AC, 1/2 in Stud, 3.375 in L x 2.063 in W x 0.415 in THK Tongue, 6-15/16 in Overall Length, Chamfered/Long Barrel, 2.705 in L Barrel, 90 deg C, Aluminum, Yellow, 1.03 in ID x 1.45 in OD
Barrel Type:Chamfered/Long
Color:Yellow
Die Code:18
Series:2ACL
Stud Size:1/2 in
Temperature Rating:90 deg C
Type:2-Hole
Voltage Rating:600 V AC
- Electro tin plated
- Manufactured from high strength aluminum alloy
- Chamfered barrel
- Color coded
- Clearly marked with wire size and die index for ILSCO tools, proper number and location of crimps
- Prefilled with DE-OX
- Color coded end caps inserted in barrel
- Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
- Provides low contact resistance
- Provides maximum conductivity and excellent crimping characteristics
- Provides easy conductor insertion
- Provides visual tooling recommendation for ILSCO or standard industry tools
- Provides easy identification and tooling recommendation
- Prevents oxides from forming
- Prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Application versatility
- Mounting hole spacing is 1-3/4 in
- Copper - Class B concentric, Class B compressed, Class C concentric, range taking when used with IDT-12-N Tool, Listed with Ilsco tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, IDTB-12, ILC-15, MT-25, 94285, IDT-12, IDT-12H
- 2 mounting holes, Expanded conductor size of 750 kcmil-500 kcmil
- 2.7675 in L Strip
