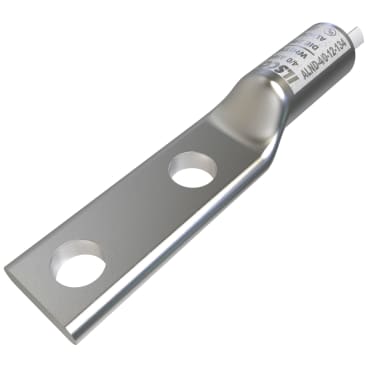

ILSCO ALND-4/0-12-134 ALUMINUM COMPRESSION LUG 2 H 4/0 1/2IN BOLT H
Product Details
Attributes
Features
Resources
ILSCO® SureCrimp® Lug Compression Connector, 2-Hole, Series: ALND, Aluminum/Copper Conductor, 4/0 AWG Conductor, Die Code: 296, 600 V AC, 1/2 in Stud, Narrow Tongue, 3 in L x 1.17 in W Tongue, 5.195 in Overall Length, Chamfered/Long Barrel, 0.553 in ID x 0.854 in OD x 1.535 in L Barrel, 1-3/4 in Mounting Hole Spacing, 1.5975 in L Wire Strip, 90 deg C, 0.562 in Mounting Hole, Aluminum, White
- Electro-tin plated provides low contact resistance
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Chamfered entry for easy conductor insertion
- Dual rated for aluminum and copper conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 KV
- Expanded wire size applicable when installed with specified dieless tools
- Color coded end cap identifies the proper compression die
- 1 to 4/0 AWG expanded conductor size
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with DE-OX® prevents oxide from forming
Product Details
ILSCO® SureCrimp® Lug Compression Connector, 2-Hole, Series: ALND, Aluminum/Copper Conductor, 4/0 AWG Conductor, Die Code: 296, 600 V AC, 1/2 in Stud, Narrow Tongue, 3 in L x 1.17 in W Tongue, 5.195 in Overall Length, Chamfered/Long Barrel, 0.553 in ID x 0.854 in OD x 1.535 in L Barrel, 1-3/4 in Mounting Hole Spacing, 1.5975 in L Wire Strip, 90 deg C, 0.562 in Mounting Hole, Aluminum, White
Attributes
Features
- Electro-tin plated provides low contact resistance
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Chamfered entry for easy conductor insertion
- Dual rated for aluminum and copper conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 KV
- Expanded wire size applicable when installed with specified dieless tools
- Color coded end cap identifies the proper compression die
- 1 to 4/0 AWG expanded conductor size
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with DE-OX® prevents oxide from forming
