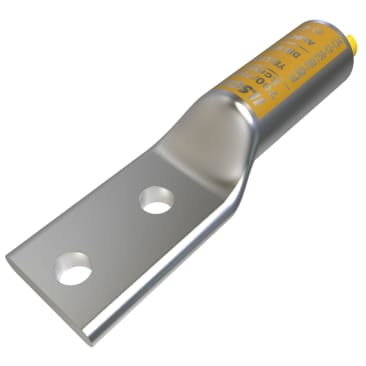

ILSCO ALND-700/750-12-134 ALUMINUM COMPRESSION LUG 2 H 700/750MCM 1/2IN
Product Details
Attributes
Features
Resources
ILSCO® SureCrimp® Compression Connector Lug, 2-Hole, Series: ALND, Aluminum/Copper Conductor, 700/750 kcmil Conductor, Die Code: 936, 600 V AC, 1/2 in Stud, Narrow Tongue, 3 in L x 2.048 in W Tongue, 7.195 in Overall Length, Chamfered/Long Barrel, 1.03 in ID x 1.46 in OD x 2.964 in L Barrel, 3.0265 in L Wire Strip, 1-3/4 in Mounting Hole Spacing, 90 deg C, 9/16 in Dia Mounting Hole, Aluminum, Yellow
- Manufactured from high strength 1350 aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro tin plated provides low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for aluminum and copper conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size with ILSCO dieless tools and Burndy Y644M dieless tool
- Narrow tongue width for limited space application
- Long barrel length with chamfered entry
Product Details
ILSCO® SureCrimp® Compression Connector Lug, 2-Hole, Series: ALND, Aluminum/Copper Conductor, 700/750 kcmil Conductor, Die Code: 936, 600 V AC, 1/2 in Stud, Narrow Tongue, 3 in L x 2.048 in W Tongue, 7.195 in Overall Length, Chamfered/Long Barrel, 1.03 in ID x 1.46 in OD x 2.964 in L Barrel, 3.0265 in L Wire Strip, 1-3/4 in Mounting Hole Spacing, 90 deg C, 9/16 in Dia Mounting Hole, Aluminum, Yellow
Attributes
Features
- Manufactured from high strength 1350 aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro tin plated provides low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for aluminum and copper conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size with ILSCO dieless tools and Burndy Y644M dieless tool
- Narrow tongue width for limited space application
- Long barrel length with chamfered entry
