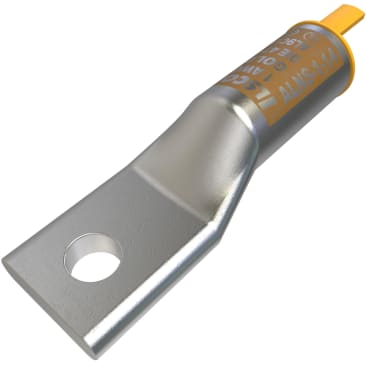

ILSCO ALNS-1-14 1 AWG ALUMINUM COMPRESSION LUG
MFR Part #: ALNS-1-14
SKU #: 3274617
Brand: ILSCO®
UPC: 783669690330
ILSCO® SureCrimp® ALNS-1-14 1-Hole Type ALNS Lug Compression Connector, 2 to 1 AWG Aluminum/Copper Conductor, Die Code: 471, 1/4 in Stud, Aluminum Alloy
Terminating Connector
UL 486A/B/453G File No. E6207 | CSA File No. LR29601
Product Details
Attributes
Features
Resources
ILSCO® SureCrimp® Lug Compression Connector, 1-Hole Type ALNS, Aluminum/Copper Conductor, 2 to 1 AWG Conductor, Die Code: 471, 1/4 in Stud, 0.996 in L x 0.748 in W x 0.186 in THK Tongue, 2.29 in Overall Length, Chamfered/Long Barrel, 0.97 in L Barrel, 1.0325 in L Strip, 90 deg C, 0.281 in Dia Mounting Hole, Aluminum Alloy, Gold, 0.358 in ID x 0.544 in OD
Stud Size:1/4 in
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
Product Details
ILSCO® SureCrimp® Lug Compression Connector, 1-Hole Type ALNS, Aluminum/Copper Conductor, 2 to 1 AWG Conductor, Die Code: 471, 1/4 in Stud, 0.996 in L x 0.748 in W x 0.186 in THK Tongue, 2.29 in Overall Length, Chamfered/Long Barrel, 0.97 in L Barrel, 1.0325 in L Strip, 90 deg C, 0.281 in Dia Mounting Hole, Aluminum Alloy, Gold, 0.358 in ID x 0.544 in OD
Attributes
Stud Size: 1/4 in
Features
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
