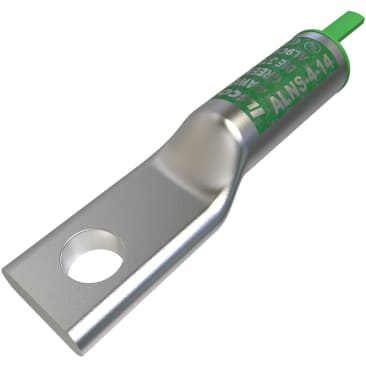

ILSCO ALNS-4-14 4 AWG ALUMINUM COMPRESSION LUG
Product Details
Attributes
Features
Resources
ILSCO® SureCrimp® Compression Connector Lug, 1-Hole, Series: ALNS, Aluminum/Copper Conductor, 6 to 4 AWG Conductor, Die Code: 375, 1/4 in Stud, 1.029 in L x 0.568 in W x 0.18 in THK Tongue, 1.029 in Overall Length, Chamfered/Long Barrel, 0.247 in ID x 0.427 in OD x 0.92 in L Barrel, 0.9825 in L Strip, Electro Tin Plated Finish, 90 deg C, 9/32 in Dia Mounting Hole, Aluminum, Green
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro tin plated provides low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for aluminum and copper conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
