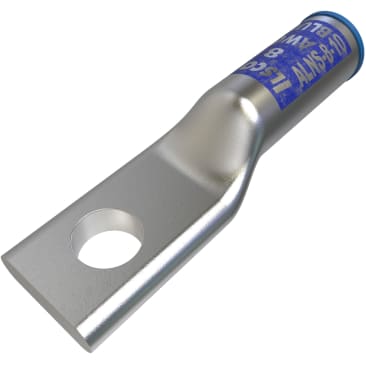

ILSCO ALNS-8-10 8 AWG ALUMINUM COMPRESSION LUG
MFR Part #: ALNS-8-10
SKU #: 3274614
Brand: ILSCO®
UPC: 783669690439
ILSCO® SureCrimp® ALNS-8-10 1-Hole Type ALNS Lug Compression Connector, 8 AWG Aluminum/Copper Conductor, Die Code: 374, #10 Stud, Aluminum Alloy
Terminating Connector
UL 486A/B/453G File No. E6207 | CSA File No. LR29601
Product Details
Features
Resources
ILSCO® SureCrimp® Lug Compression Connector, 1-Hole Type ALNS, Aluminum/Copper Conductor, 8 AWG Conductor, Die Code: 374, #10 Stud, 0.661 in L x 0.388 in W x 0.125 in THK Tongue, 1.47 in Overall Length, Chamfered/Long Barrel, 0.602 in L Barrel, 0.6645 in L Strip, 90 deg C, 0.219 in Dia Mounting Hole, Aluminum Alloy, Blue, 0.155 in ID x 0.3 in OD
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
