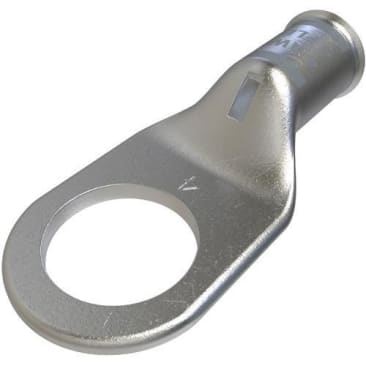

ILSCO CCL-4-12 COPPER COMPRESSION LUG 4AWG 1 H 1/2IN
MFR Part #: CCL-4-12
SKU #: 3241615
Brand: ILSCO®
UPC: 783669031287
ILSCO® ClearChoice® CCL-4-12 CCL 1-Hole Light Duty Lug Compression Connector With Sight Hole, 4 AWG Flex Copper Conductor, 1/2 in Stud, Tin Plated Copper
Terminating Connector Applications
UL 486A-486B File No. E6207 | CSA File No. LR29601 | ECCN EAR99
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Flex Copper Conductor, 4 AWG Conductor, 600 to 35 kV V AC, 1/2 in Stud, Solid Seamless Tongue, 0.858 in L x 0.752 in W x 0.091 in THK Tongue, 1.681 in Overall Length, 0.283 in ID x 0.362 in OD Barrel, 90 deg C, Tin Plated Copper, Gray, 0.752 in W
Stud Size:1/2 in
- Electro-tin plated
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 4 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
- Color coded
- Maximum conductivity and excellent crimping characteristics
- Listed with ILSCO® MT-25
