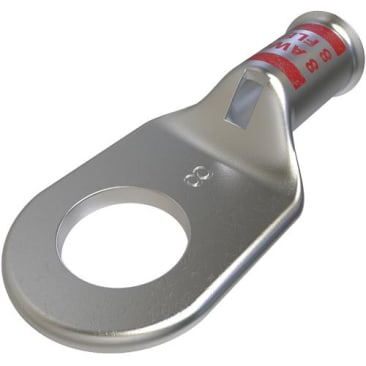

ILSCO CCL-8-516 COPPER COMPRESSION LUG 8AWG 5/16IN HOLE
MFR Part #: CCL-8-516
SKU #: 3122680
Brand: ILSCO®
UPC: 783669031041
ILSCO® ClearChoice® CCL-8-516 CCL 1-Hole Light Duty Lug Compression Connector, 8 AWG Copper Conductor, 5/16 in Stud
For terminating connector
UL 486A-B/E6207 | CSA LR-29601
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Copper Conductor, 8 AWG Conductor, 600 V AC, 5/16 in Stud, Solid Seamless Tongue, 0.724 in L x 0.598 in W x 0.059 in THK Tongue, 1.276 in Overall Length, 0.185 in ID x 0.256 in OD Barrel, 90 deg C, Red, 0.598 in W
Stud Size:5/16 in
- Electro-tin plated
- Solid seamless tang
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 8 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
Product Details
ILSCO® ClearChoice® Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Copper Conductor, 8 AWG Conductor, 600 V AC, 5/16 in Stud, Solid Seamless Tongue, 0.724 in L x 0.598 in W x 0.059 in THK Tongue, 1.276 in Overall Length, 0.185 in ID x 0.256 in OD Barrel, 90 deg C, Red, 0.598 in W
Attributes
Stud Size: 5/16 in
Features
- Electro-tin plated
- Solid seamless tang
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 8 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
