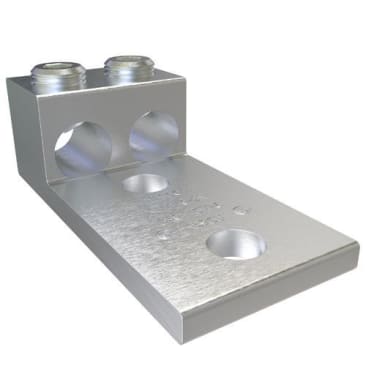

ILSCO AU-350-2N 350KCIML LUG 2CONNECTOR 1/2IN STUD SIZE
MFR Part #: AU-350-2N
SKU #: 3120139
Brand: ILSCO®
UPC: 783669005745
ILSCO® ClearChoice® AU-350-2N 2-Conductor Dual Rated Mechanical Terminal Lug, 6 AWG to 350 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 2 Bolt Holes, 6061-T6 Aluminum Alloy
Terminating Connector Applications
CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Mechanical Terminal Lug, 2-Conductor Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3 in L x 2 in W x 0.312 in THK Tongue, Straight Tongue, 2000 V AC, 5/16 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 4-5/16 in L x 4 in W x 1-3/8 in H
Finish:Electro-Plated Tin
Stud Size:1/2 in
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Electro-tin plated provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 2-studs
- 9/16 in mounting hole
Product Details
ILSCO® ClearChoice® Mechanical Terminal Lug, 2-Conductor Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3 in L x 2 in W x 0.312 in THK Tongue, Straight Tongue, 2000 V AC, 5/16 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 4-5/16 in L x 4 in W x 1-3/8 in H
Attributes
Finish: Electro-Plated Tin
Stud Size: 1/2 in
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Electro-tin plated provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 2-studs
- 9/16 in mounting hole
