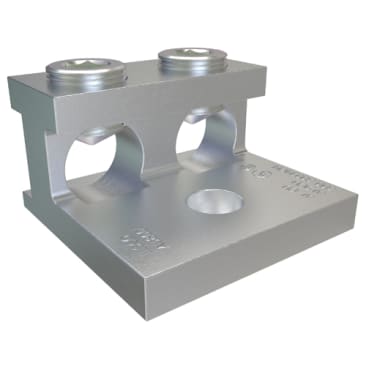

ILSCO AU-800-I COPPER/ALUMINUM DOUBLE LUG 800-300
Product Details
Attributes
Resources
ILSCO®, AU-800-I, Mechanical Lug, 2-Conductor, Series: AU, Aluminum/Copper Conductor, 800 to 300 kcmil Conductor, 5/8 in Stud, 1 Bolt Holes, 3.035 in W x 1.99 in L x 0.468 in THK Tongue, Straight Tongue, 600 V, Specifications: 0.66 Dia Mounting Hole, 1/2 in Internal Hex, Stranded Conductor, 2 Ports , 15/16 in Wire Binding Screw Size, 500 Wire Binding Torque, 90 deg C, Tin, Silver, 1.75 in H x 3.035 in W x 3.04 in L Dimensions
Product Details
ILSCO®, AU-800-I, Mechanical Lug, 2-Conductor, Series: AU, Aluminum/Copper Conductor, 800 to 300 kcmil Conductor, 5/8 in Stud, 1 Bolt Holes, 3.035 in W x 1.99 in L x 0.468 in THK Tongue, Straight Tongue, 600 V, Specifications: 0.66 Dia Mounting Hole, 1/2 in Internal Hex, Stranded Conductor, 2 Ports , 15/16 in Wire Binding Screw Size, 500 Wire Binding Torque, 90 deg C, Tin, Silver, 1.75 in H x 3.035 in W x 3.04 in L Dimensions
