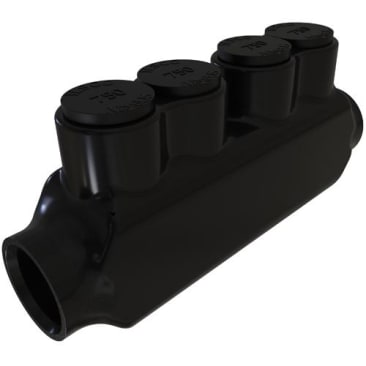

ILSCO PBT-750 NIMBUS PBT INSERT BLACK SPL/OFFSET 750MCM-250MCM
MFR Part #: PBT-750
SKU #: 3235261
Brand: ILSCO®
UPC: 783669077087
ILSCO® NIMBUS® PBT-750 Type PBT 2-Port 2-Wire Dual Rated Insulated Splicer/Reducer Connector, Aluminum/Copper Conductor, Aluminum
CSA File No. LR-29601 | UL 486A/486B | UL 453G | UL File No. E6207 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Features
Resources
ILSCO® NIMBUS® Splicer/Reducer Connector, Type PBT 2-Port 2-Wire Dual Rated Insulated, Aluminum/Copper Conductor, 600 V AC, 250 to 750 kcmil Wire, 3/8 in Hex, 535 A, -45 to 90 deg C, Aluminum, 7.25 in L x 1.75 in W x 3.31 in H
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Patented screw design
- Entry port closure
- Prevents oxides from forming
Product Details
ILSCO® NIMBUS® Splicer/Reducer Connector, Type PBT 2-Port 2-Wire Dual Rated Insulated, Aluminum/Copper Conductor, 600 V AC, 250 to 750 kcmil Wire, 3/8 in Hex, 535 A, -45 to 90 deg C, Aluminum, 7.25 in L x 1.75 in W x 3.31 in H
Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Patented screw design
- Entry port closure
- Prevents oxides from forming
