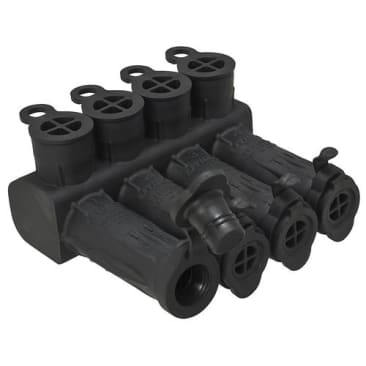

ILSCO PED4-350SS-DB 4PORT UNDERGROUND TAP CONNECTOR 350MCM-11
MFR Part #: PED4-350SS-DB
SKU #: 3157844
Brand: ILSCO®
UPC: 783669712247
ILSCO® SafetySub® PED4-350SS-DB Type PED-SS 4-Port Dual Rated Watertight Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
For direct burial in earth and hand holes
ANSI 119.1/119.4 | CSA File No. LR29601 | UL File No. E125087/486D/88X4 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® SafetySub® Multi-Tap Connector, Type PED-SS 4-Port Dual Rated Watertight, Aluminum/Copper Conductor, 600 V AC, 10 AWG to 350 kcmil Wire, 90 deg C, Aluminum, Electro-Plated Tin, 4.8 in L x 4.3 in W x 2.7 in H
Finish:Electro-Plated Tin
- Connector fabricated from high strength aluminum alloy 6061-T6
- Clean plated for low contact resistance
- EPDM cover has dielectric strength of 240 VAC/mil with nominal thickness is 125 mil
- Provides low contact resistance
- Provides maximum conductivity
- Specifically formulated for electrical waterproofing requirements
- Pre-filled with DE-OX® oxide inhibiting compound
- Re-sealable and tethered wire ports
- No taping required
Product Details
ILSCO® SafetySub® Multi-Tap Connector, Type PED-SS 4-Port Dual Rated Watertight, Aluminum/Copper Conductor, 600 V AC, 10 AWG to 350 kcmil Wire, 90 deg C, Aluminum, Electro-Plated Tin, 4.8 in L x 4.3 in W x 2.7 in H
Attributes
Finish: Electro-Plated Tin
Features
- Connector fabricated from high strength aluminum alloy 6061-T6
- Clean plated for low contact resistance
- EPDM cover has dielectric strength of 240 VAC/mil with nominal thickness is 125 mil
- Provides low contact resistance
- Provides maximum conductivity
- Specifically formulated for electrical waterproofing requirements
- Pre-filled with DE-OX® oxide inhibiting compound
- Re-sealable and tethered wire ports
- No taping required
