ILSCO ALNS-250-38 AL COMP 250 KCMIL 13/32 T UL
MFR Part #: ALNS-250-38
SKU #: 3274622
Brand: ILSCO®
UPC: 783669687446

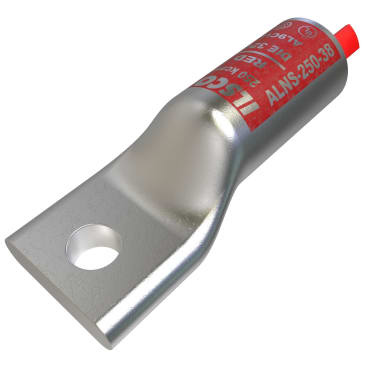

ILSCO® SureCrimp® ALNS-250-38 1-Hole Type ALNS Lug Compression Connector, 1/0 AWG to 250 kcmil Aluminum/Copper Conductor, Die Code: 324, 3/8 in Stud, Aluminum Alloy
Terminating Connector
UL 486A/B/453G File No. E6207 | CSA File No. LR29601
Product Details
Attributes
Features
Resources
ILSCO® SureCrimp® Lug Compression Connector, 1-Hole Type ALNS, Aluminum/Copper Conductor, 1/0 AWG to 250 kcmil Conductor, Die Code: 324, 3/8 in Stud, 0.875 in L x 1.264 in W Tongue, 3.2 in Overall Length, Chamfered/Long Barrel, 1.535 in L Barrel, 1.5975 in L Strip, 90 deg C, 0.406 in Dia Mounting Hole, Aluminum Alloy, Red, 0.595 in ID x 0.924 in OD
Stud Size:3/8 in
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
Product Details
ILSCO® SureCrimp® Lug Compression Connector, 1-Hole Type ALNS, Aluminum/Copper Conductor, 1/0 AWG to 250 kcmil Conductor, Die Code: 324, 3/8 in Stud, 0.875 in L x 1.264 in W Tongue, 3.2 in Overall Length, Chamfered/Long Barrel, 1.535 in L Barrel, 1.5975 in L Strip, 90 deg C, 0.406 in Dia Mounting Hole, Aluminum Alloy, Red, 0.595 in ID x 0.924 in OD
Attributes
Stud Size: 3/8 in
Features
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
