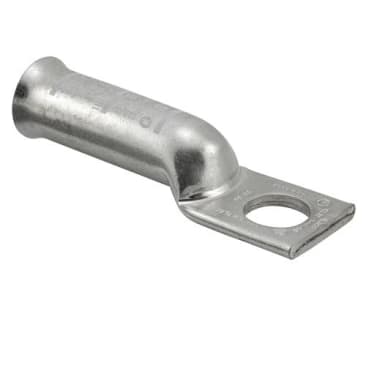

ILSCO CLNF-250-12-134 COMPRESSION LUG 250MCM

Name: ILSCO CLNF-250-12-134 COMPRESSION LUG 250MCM
Brand: ILSCO®
SKU: 3245484
Availability: OutOfStock

MFR Part #: CLNF-250-12-134

SKU #: 3245484

Brand: ILSCO®

UPC: 783669651287

ILSCO® SureCrimp® CLNF-250-12-134 2-Hole Lug Compression Connector, 250 kcmil Copper Conductor, Die Code: I-62, 1/2 in Stud

For terminating connector

UL 453G/486A-B/E6207 | CSA LR-29601

Product Details
Attributes
Features
Resources

ILSCO® SureCrimp® Lug Compression Connector, 2-Hole, Series: CLNF, Copper Conductor, 250 kcmil Conductor, Die Code: I-62, 600 V AC, 1/2 in Stud, 3 in L x 1.09 in W x 0.156 in THK Tongue, 5.563 in Overall Length, Chamfered/Flared/Long Barrel, 0.593 in ID x 0.75 in OD x 2.125 in L Barrel, Specifications: 1-3/4 in Mounting Hole Spacing, 2-3/16 in L Wire Strip, 90 deg C, 0.531 in Mounting Hole, Yellow, 1.09 in W

Product Details

ILSCO® SureCrimp® Lug Compression Connector, 2-Hole, Series: CLNF, Copper Conductor, 250 kcmil Conductor, Die Code: I-62, 600 V AC, 1/2 in Stud, 3 in L x 1.09 in W x 0.156 in THK Tongue, 5.563 in Overall Length, Chamfered/Flared/Long Barrel, 0.593 in ID x 0.75 in OD x 2.125 in L Barrel, Specifications: 1-3/4 in Mounting Hole Spacing, 2-3/16 in L Wire Strip, 90 deg C, 0.531 in Mounting Hole, Yellow, 1.09 in W

Attributes

Stud Size: 1/2 in

Mounting Hole Size: .531 in

Features

Manufactured from high strength seamless copper tubing, electro-tin plated
Color coded
Offers maximum conductivity and excellent crimping characteristics
Provides low contact resistance
For easy conductor insertion
Identifies the proper compression die
Application versatility
Reduces inventory requirements
Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
Alternate conductor size of 4/0 flexible
1/0 AWG to 250 kcmil expanded conductor size
Without sight hole
