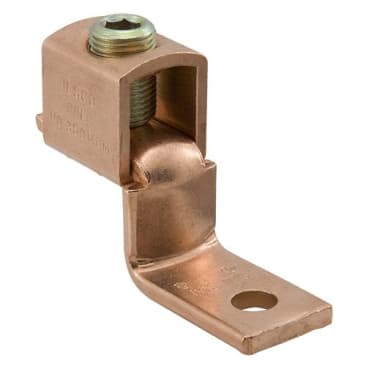

ILSCO SLU-300 350MCM COPPER TERMINAL LUG
MFR Part #: SLU-300
SKU #: 3274623
Brand: ILSCO®
UPC: 783669834710
ILSCO® ClearChoice® SLU-300 1-Conductor Compact Mechanical Lug, 1/0 AWG to 350 kcmil Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Copper
For terminating connector
CSA File No. LR-29601 | UL 486A/B/453G | E6207
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Mechanical Lug, 1-Conductor Compact, Series: SLU, Copper Conductor, 1/0 AWG to 350 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-1/2 in L x 1 in W Tongue, Straight/Offset Tongue, 2000 V AC, Specifications: 5/16 in Hex Socket Screw, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 3-3/16 in L x 1 in W
Finish:Electrolytic
Stud Size:3/8 in
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
Product Details
ILSCO® ClearChoice® Mechanical Lug, 1-Conductor Compact, Series: SLU, Copper Conductor, 1/0 AWG to 350 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-1/2 in L x 1 in W Tongue, Straight/Offset Tongue, 2000 V AC, Specifications: 5/16 in Hex Socket Screw, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 3-3/16 in L x 1 in W
Attributes
Finish: Electrolytic
Stud Size: 3/8 in
Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
