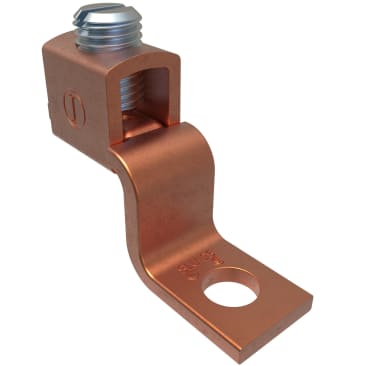

ILSCO SLU-35 COPPER LUG 6-14
MFR Part #: SLU-35
SKU #: 3035690
Brand: ILSCO®
UPC: 783669829464
ILSCO® ClearChoice® SLU-35 1-Conductor Compact Mechanical Lug, 14 to 6 AWG Copper Conductor, #10 Stud, 1 Bolt Holes, Copper
For terminating connector
CSA File No. LR-29601 | UL 486A/B/453G | E6207
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Mechanical Lug, 1-Conductor Compact, Series: SLU, Copper Conductor, 14 to 6 AWG Conductor, #10 Stud, 1 Bolt Holes, 0.4688 in L x 0.375 in W Tongue, Straight/Offset Tongue, 2000 V AC, Specifications: Slotted Hex, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 1-3/16 in L x 3/4 in W
Finish:Electrolytic
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
