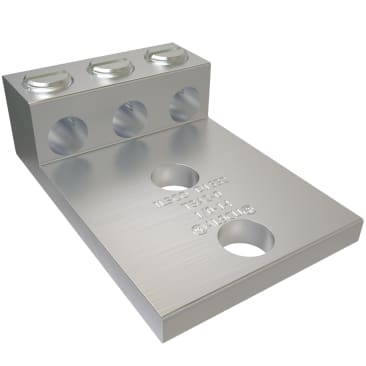

ILSCO T3A2-0 COPPER/ALUMINUM TRIPLE LUG 1/0-14

Name: ILSCO T3A2-0 COPPER/ALUMINUM TRIPLE LUG 1/0-14
Brand: ILSCO®
SKU: 3035625
Availability: OutOfStock

MFR Part #: T3A2-0

SKU #: 3035625

Brand: ILSCO®

UPC: 783669895902

ILSCO® ClearChoice® T3A2-0 3-Conductor Dual Rated Mechanical Terminal Lug, 14 to 1/0 AWG Aluminum/Copper Conductor, 3/8 in Stud, 3 Bolt Holes, 6061-T6 Aluminum Alloy

Terminating Connector Applications

CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99

Product Details
Attributes
Features
Resources

ILSCO® ClearChoice® Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 14 to 1/0 AWG Conductor, 3/8 in Stud, 3 Bolt Holes, 2.156 in L x 1.938 in W x 1/4 in THK Tongue, Straight Tongue, 2000 V AC, Slotted Hex, 1 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 2.906 in L x 1.938 in W x 0.875 in H

Product Details

ILSCO® ClearChoice® Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 14 to 1/0 AWG Conductor, 3/8 in Stud, 3 Bolt Holes, 2.156 in L x 1.938 in W x 1/4 in THK Tongue, Straight Tongue, 2000 V AC, Slotted Hex, 1 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 2.906 in L x 1.938 in W x 0.875 in H

Attributes

Finish: Electro-Plated Tin

Stud Size: 3/8 in

Features

Manufactured from high strength 6061-T6 aluminum alloy
Chamfered wire entry provides ease of installation
Must be mounted with a minimum of 2-bolts
Mounting hole spacing from side to side, hole to hole is 7/8 in
Provides low contact resistance
Ensures reliability for copper or aluminum conductors
Suitable for use with either copper or aluminum conductors
2-studs
