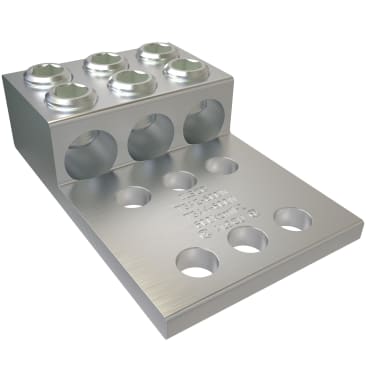

ILSCO T3A2-600N COPPER/ALUMINUM TRIPLE LUG 600-2
MFR Part #: T3A2-600N
SKU #: 3035626
Brand: ILSCO®
UPC: 783669900576
ILSCO® ClearChoice® T3A2-600N 3-Conductor Dual Rated Mechanical Terminal Lug, 2 AWG to 600 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 6 Bolt Holes, 6061-T6 Aluminum Alloy
Terminating Connector Applications
CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 6 Bolt Holes, 3 in L x 3-1/2 in W x 3/8 in THK Tongue, Straight Tongue, 2000 V AC, 1/2 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 5-1/2 in L x 3-1/2 in W x 1-1/2 in H
Finish:Electro-Plated Tin
Stud Size:1/2 in
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Must be mounted with a minimum of 2-bolts
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use with either copper or aluminum conductors
Product Details
ILSCO® ClearChoice® Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 6 Bolt Holes, 3 in L x 3-1/2 in W x 3/8 in THK Tongue, Straight Tongue, 2000 V AC, 1/2 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 5-1/2 in L x 3-1/2 in W x 1-1/2 in H
Attributes
Finish: Electro-Plated Tin
Stud Size: 1/2 in
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Must be mounted with a minimum of 2-bolts
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use with either copper or aluminum conductors
