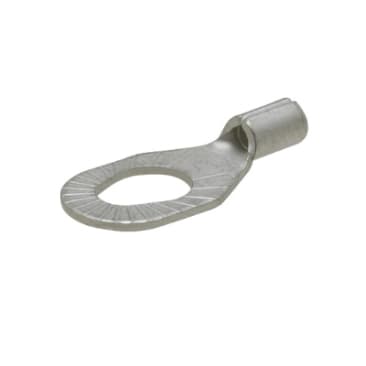

ILSCO BRBR-18-6MS-P50 BARE RING BRONZED 18-22 6-10 STUD
MFR Part #: BRBR-18-6MS-P50
SKU #: 3161807
Brand: ILSCO®
UPC: 783669201055
ILSCO® BRBR-18-6MS-P50 Type BRBR Multi-Stud Non-Insulated Ring Terminal, 22 to 18 AWG Conductor, 0.786 in L, Brazed Barrel, Copper Alloy
UL 486A/B File No. E6207
Product Details
Attributes
Features
Resources
ILSCO® Ring Terminal, Type BRBR Multi-Stud Non-Insulated, Copper Conductor, 22 to 18 AWG Conductor, #6 to 10 Stud, 0.786 in Length, Brazed Barrel, Ring Tongue, 0.339 in W Tongue, 600 V AC, Die Set D1322, 105 deg C, Copper Alloy, Electro-Tin Plated, 2.88 in H x 1.21 in W x 3.5 in D
Barrel Type:Brazed
Conductor Type:Copper
Finish:Electro-Tin Plated
Specifications:Die Set D1322
Temperature Rating:105 deg C
Tongue Type:Ring
Type:Type BRBR Multi-Stud Non-Insulated
Voltage Rating:600 V AC
- Multi-stud shape permits use with #6, #8 or #10 mounting screw
- Funnel wire entry
- Secure termination that cannot be removed unless mounting screw is removed
- Versatile with multiple mounting screw sizes
- Provides easy wire range identification
- Offers maximum conductivity
- Provides low contact resistance
- Stronger crimp connection that will not split open, prevents wire pull out
- Smooth wire insertion into barrel
- Ensures reliability for copper conductor
- Provides corrosion resistance and strain relief
- Increased heat and chemical resistant qualities for more demanding applications
- Provides strain relief, prevents exposure of conductor
Product Details
ILSCO® Ring Terminal, Type BRBR Multi-Stud Non-Insulated, Copper Conductor, 22 to 18 AWG Conductor, #6 to 10 Stud, 0.786 in Length, Brazed Barrel, Ring Tongue, 0.339 in W Tongue, 600 V AC, Die Set D1322, 105 deg C, Copper Alloy, Electro-Tin Plated, 2.88 in H x 1.21 in W x 3.5 in D
Attributes
Barrel Type: Brazed
Conductor Type: Copper
Finish: Electro-Tin Plated
Specifications: Die Set D1322
Temperature Rating: 105 deg C
Tongue Type: Ring
Type: Type BRBR Multi-Stud Non-Insulated
Voltage Rating: 600 V AC
Features
- Multi-stud shape permits use with #6, #8 or #10 mounting screw
- Funnel wire entry
- Secure termination that cannot be removed unless mounting screw is removed
- Versatile with multiple mounting screw sizes
- Provides easy wire range identification
- Offers maximum conductivity
- Provides low contact resistance
- Stronger crimp connection that will not split open, prevents wire pull out
- Smooth wire insertion into barrel
- Ensures reliability for copper conductor
- Provides corrosion resistance and strain relief
- Increased heat and chemical resistant qualities for more demanding applications
- Provides strain relief, prevents exposure of conductor
